Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference

  1. Ignition "ON".

  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

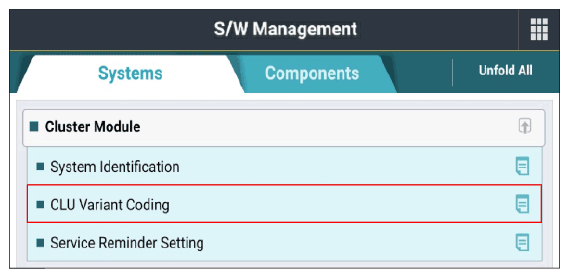

G13806934Courtesy of KIA MOTORS AMERICA, INC.

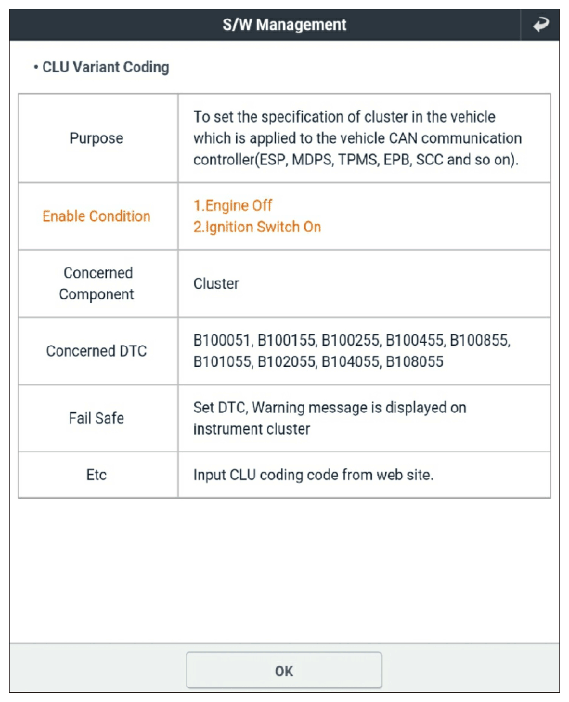

G13806935Courtesy of KIA MOTORS AMERICA, INC.
G13806936Courtesy of KIA MOTORS AMERICA, INC.

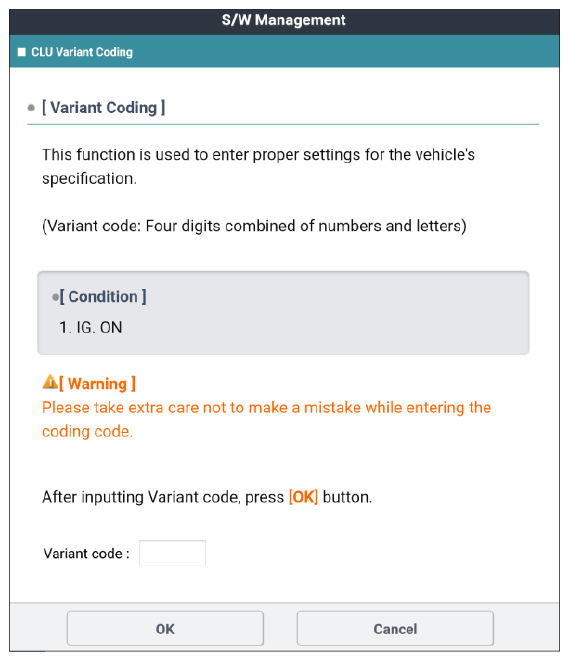

G13806937Courtesy of KIA MOTORS AMERICA, INC.

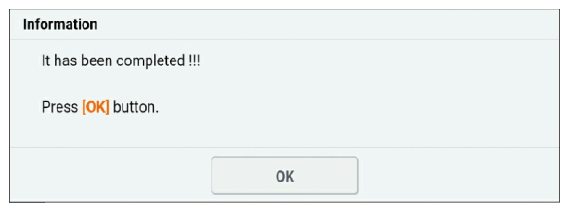

G13806938Courtesy of KIA MOTORS AMERICA, INC.
