Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference

  1. Ignition "ON".

  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

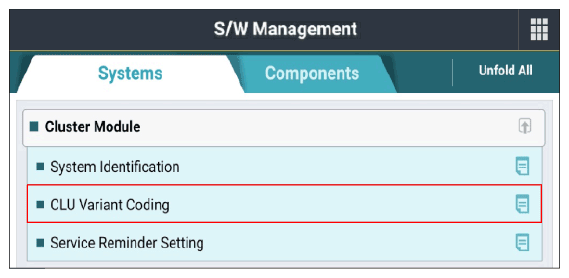

G13806952Courtesy of KIA MOTORS AMERICA, INC.

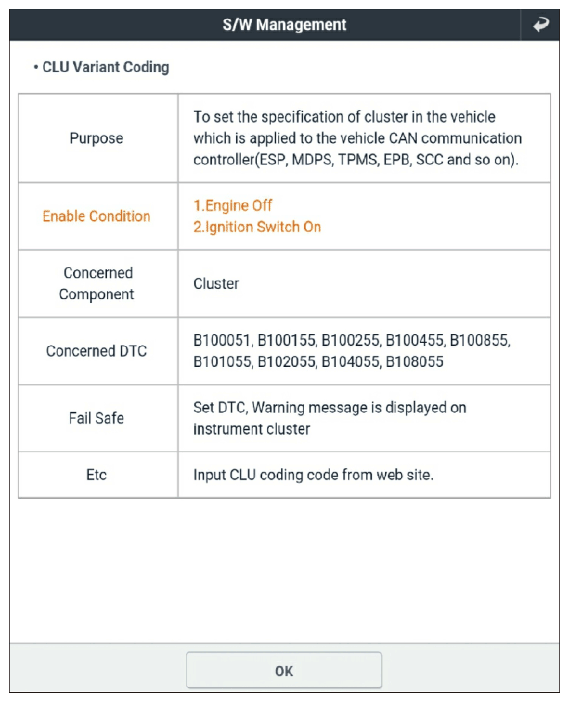

G13806953Courtesy of KIA MOTORS AMERICA, INC.

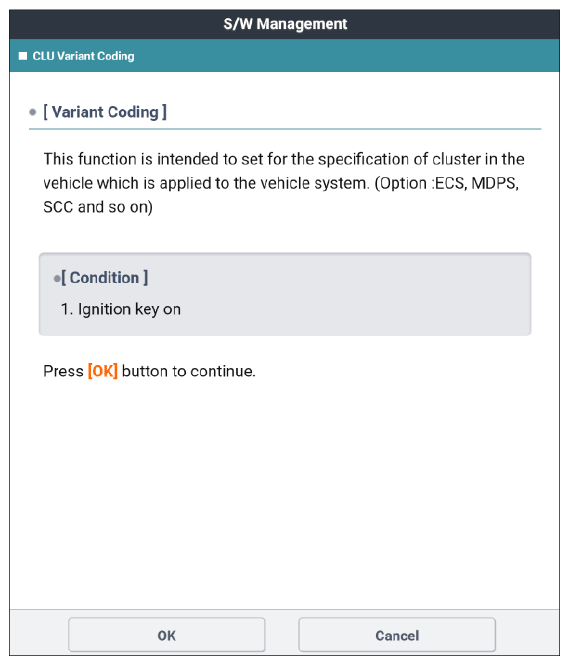

G13806954Courtesy of KIA MOTORS AMERICA, INC.

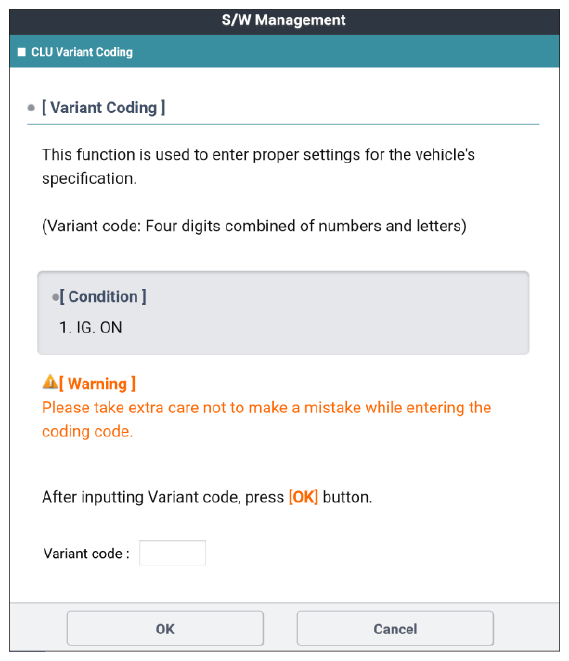

G13806955Courtesy of KIA MOTORS AMERICA, INC.

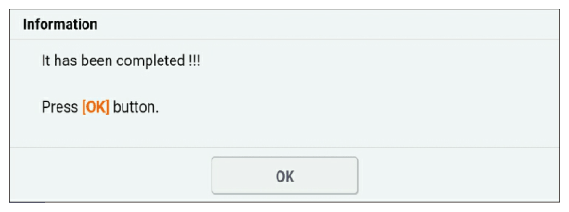

G13806956Courtesy of KIA MOTORS AMERICA, INC.
