Repair Procedures: Removal

Perform the adaptive value backup procedure using the KDS when replacing with a new AWD ECM.
Remove the luggage side trim [LH].
(Refer to " Replacement ")

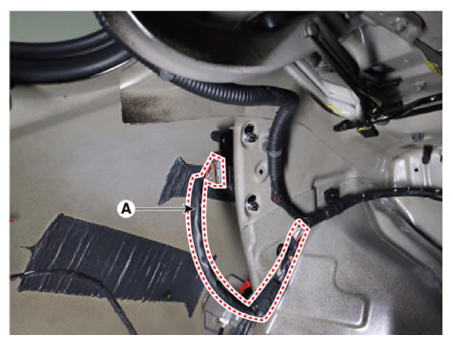

Disconnect the AWD ECU connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the AWD ECU (A) after removing the mounting nuts.
Tightening torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
