S/W Management

Inspection Condition Inspection Procedure Reference

  1. Ignition "ON".

  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "Vehicle S/W Management" with KDS.
  3. Perform "Adaptive Value BackUp & Input" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 8

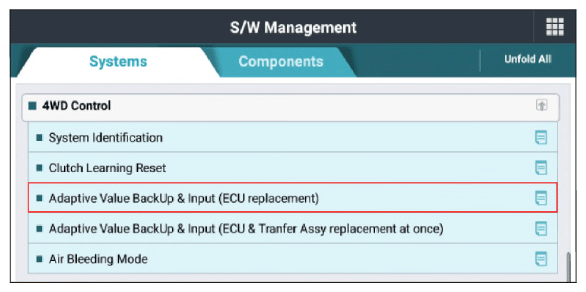

G13807542Courtesy of KIA MOTORS AMERICA, INC.

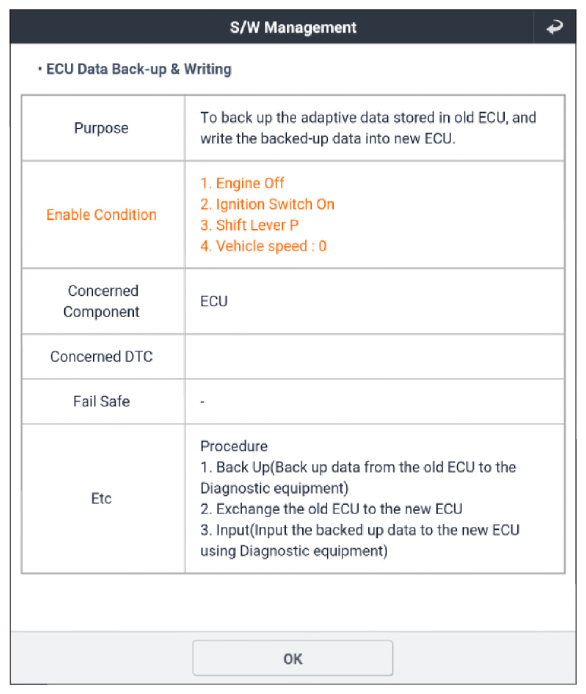

G13807543Courtesy of KIA MOTORS AMERICA, INC.

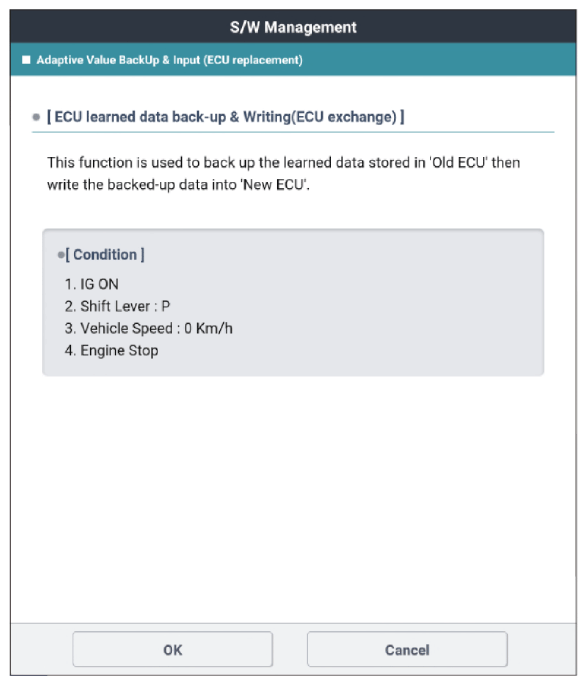

G13807544Courtesy of KIA MOTORS AMERICA, INC.

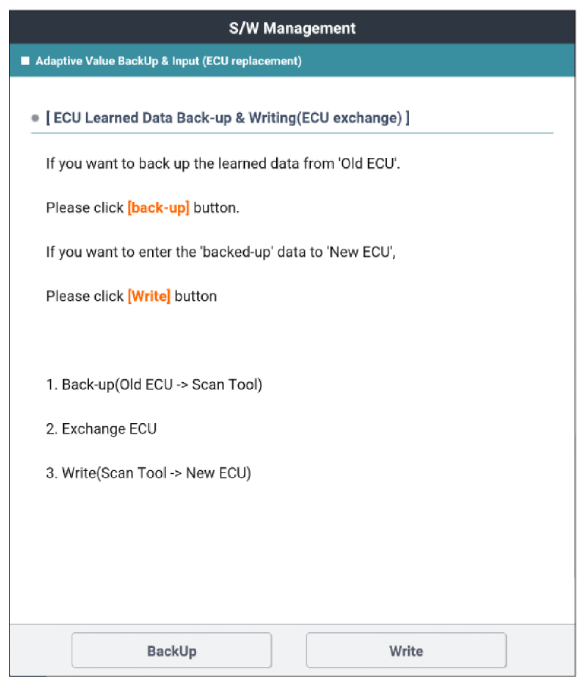

G13807545Courtesy of KIA MOTORS AMERICA, INC.

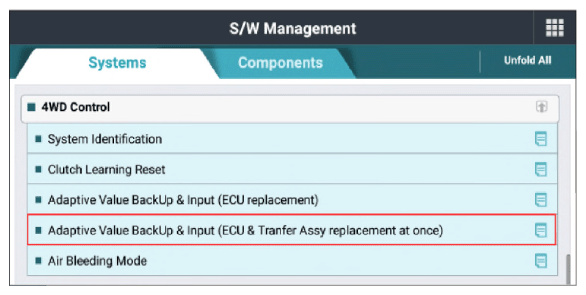

G13807546Courtesy of KIA MOTORS AMERICA, INC.
G13807547Courtesy of KIA MOTORS AMERICA, INC.

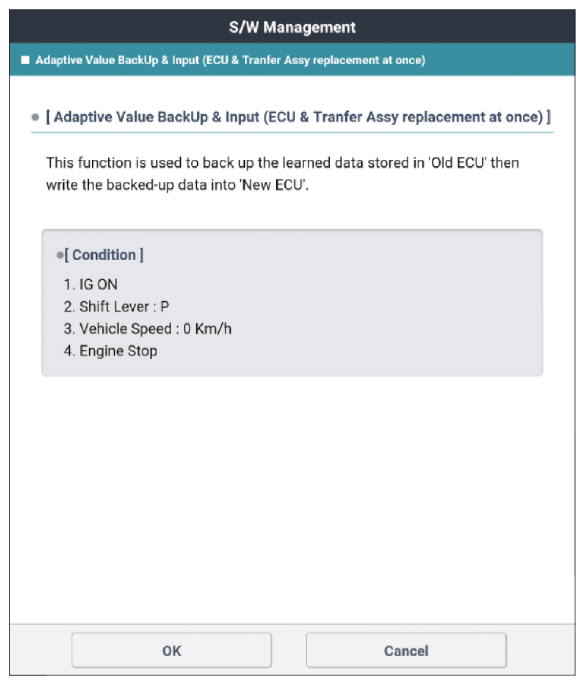

G13807548Courtesy of KIA MOTORS AMERICA, INC.

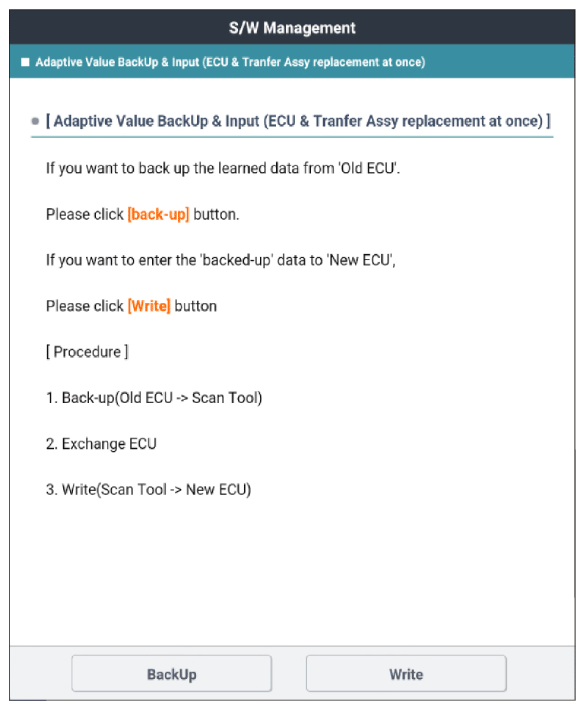

G13807549Courtesy of KIA MOTORS AMERICA, INC.
