Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.

Place the transmission in neutral or N.
Raise the vehicle, and make sure it is securely supported.

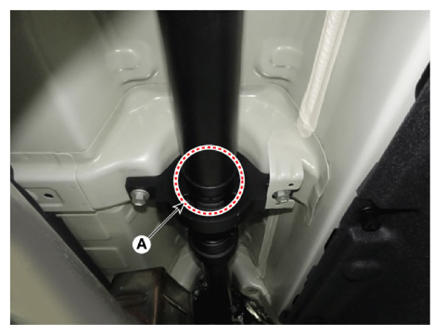

Check the CV joint boot (A). If the CV joint boot is damaged, replace the propeller shaft assembly.

Courtesy of KIA MOTORS AMERICA, INC.
Check the excessive movement of CV joint.
If has that, should be replaced the propeller shaft.
