Repair Procedures: Installation

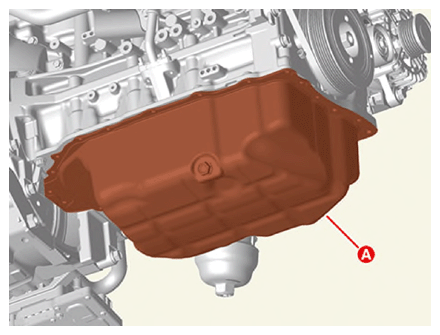

1. Before assembling the oil pan, remove the hardening sealant, foreign material, oil, dust, moisture remaining on the sealing surface and on the mating part.
2. Assemble the oil pan within 5 minutes after applying sealant.

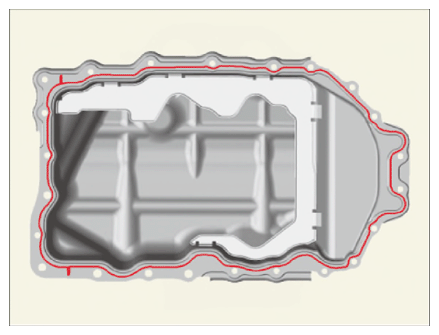

   Bead width:  3.5 - 4.5 mm (0.13780 - 0.17717 in.)

   Sealant:  FIPG TYPE AAO (MS721-40)

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE:

   • When applying sealant gasket, sealant must not be protruded into the inside of oil pan.
   • To prevent leakage of oil, apply sealant gasket to the inner threads of the bolt holes.
   • When applying sealant gasket on the lower crankcase, the sealant application line should be same with that of the oil pan.

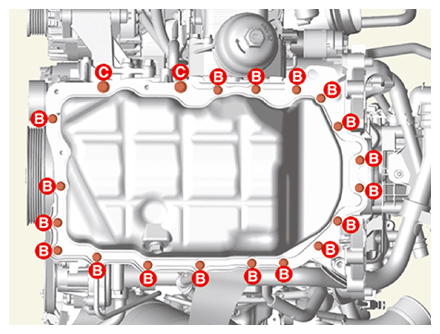

Tightening torque:

Bolts B: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft) Bolts C: 29.4 - 33.3 N.m (3.0 - 3.4 kgf.m, 21.6 - 24.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

(Refer to " Replacement  ")

(Refer to " Removal And Installation  ")
