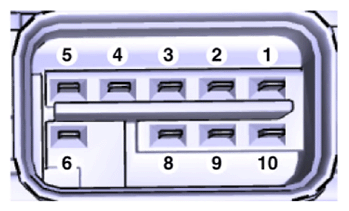

Connector And Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.

Pin	Function
1	Fuel sender (-)
2	Fuel pressure sensor signal
3	Fuel pressure sensor ground
4	Ground
5	CAN_LOW
6	Fuel sender (+)
7	-
8	Fuel pressure sensor (+)
9	CAN_HIGH
10	Battery (+)
