Repair Procedures: Removal

  1. Remove the fuel pump module.

    (Refer to " Removal  ")

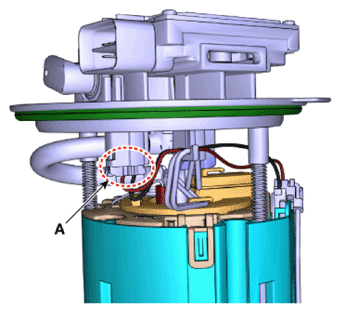

  2. Disconnect the fuel sender connector (A).
    G13837655Courtesy of KIA MOTORS AMERICA, INC.

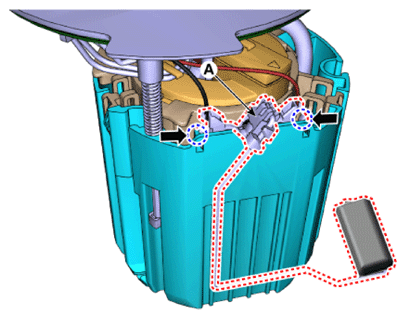

  3. Press the fixing hook and then remove fuel sender (A).
    G13837656Courtesy of KIA MOTORS AMERICA, INC.
