Rail Pressure Sensor (RPS): Specifications: Specification

Courtesy of KIA MOTORS AMERICA, INC.

Item		Specification
Pressure	bar	0	225	450
	Mpa	0	22.5	45
	kgf/cm2	0	229.4	458.8

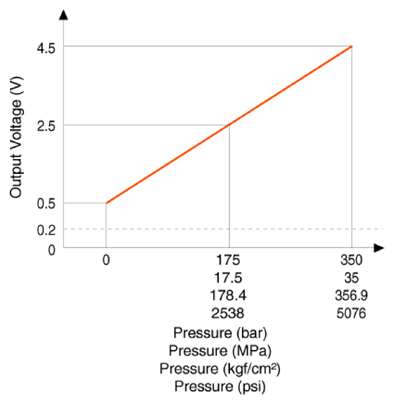

Output Voltage (V)	25°C (77°F)	0.5 ± 0.40	2.5 ± 0.56	4.5 ± 0.72
	-40°C (-40°F)	0.5 ± 0.06	2.5 ± 0.84	4.5 ±0.108
	140°C(284°F)
