Repair and Diagnosis
›
Engine Mechanical
›
Starter
›
Engine Starting System - 2.5L
›
Starter
›

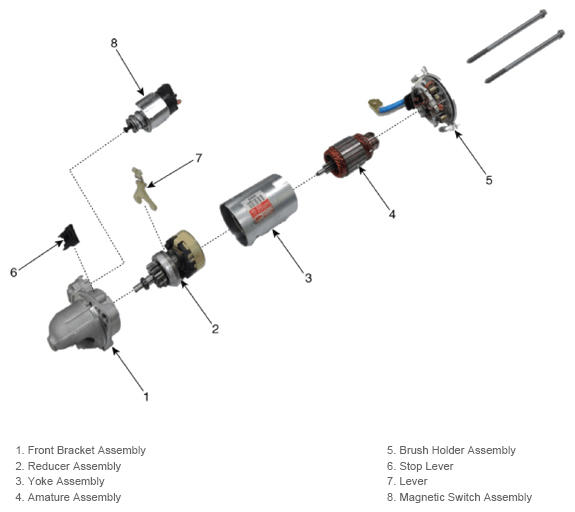

Components And Components Location
›
Component Location
Component Location

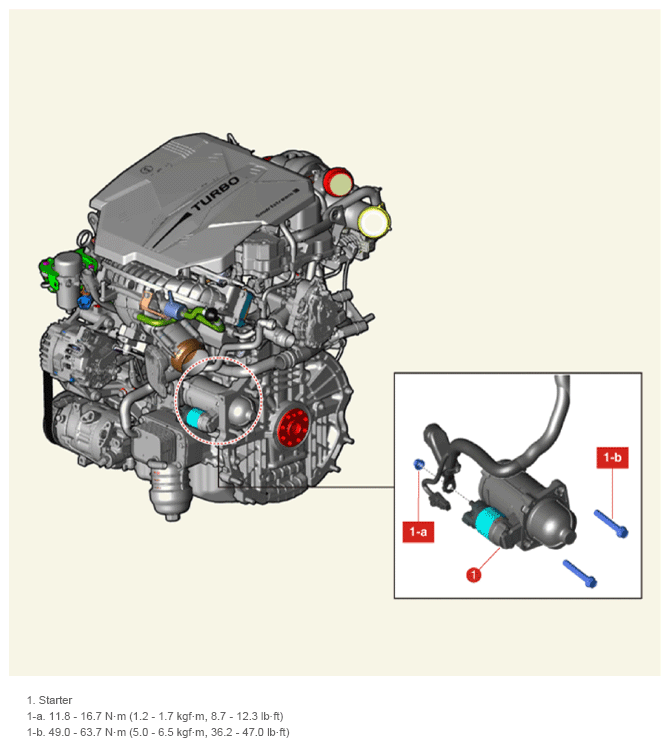

Fig 1: Starter Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
