Repair Procedures: Installation

NOTE:

Install the CMPS with the specified torque.
If CKPS is dropped, it may cause internal damage. Do not use it.

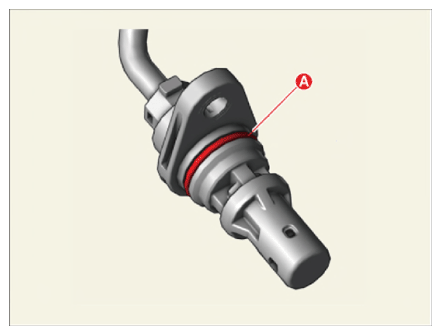

Install the CKPS after applying the engine oil to the O-ring (A).

G13837439

Courtesy of KIA MOTORS AMERICA, INC.

Be careful to damage the sensor, when it is installed.

Install in the reverse order of removal.
