ETC Motor

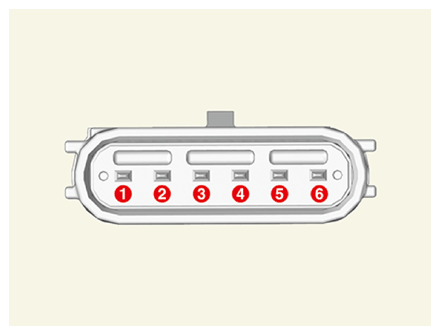

  1. Measure resistance between the ETC module terminals 1 and 2 after disconnecting the connector.
    G13837451Courtesy of KIA MOTORS AMERICA, INC.

    Specification:  1.71 - 2.09 Ω (Room temperature)
