Repair Procedures: Installation

NOTE:
  • Install the ECTS with the specified torque.
  • If ECTS is dropped, it may cause internal damage. Do not use it.
  • Apply the engine coolant to the O-ring (A).
    G13837471Courtesy of KIA MOTORS AMERICA, INC.

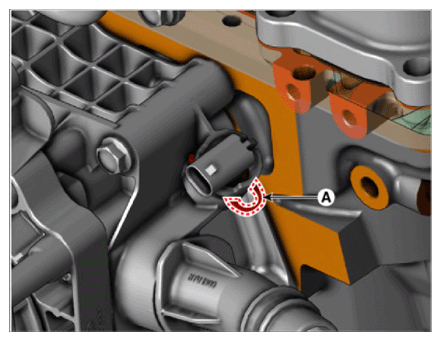

  • The sensor fixing clip (A) must be replaced with a new one (Do not reuse.)
    G13837472Courtesy of KIA MOTORS AMERICA, INC.
  1. Install in the reverse order of removal.
  2. Fill the engine cooling system with coolant.

    (Refer to " Replacement And Air Bleeding  ")
