Circuit Inspection

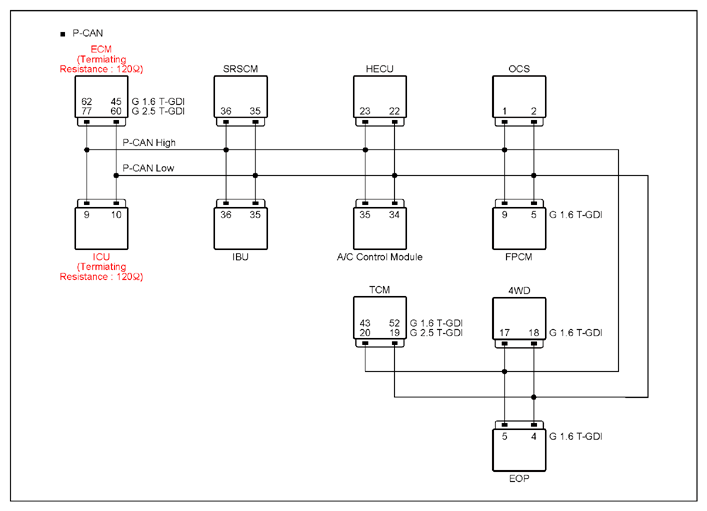

G13830440

Courtesy of KIA MOTORS AMERICA, INC.

CAN Communication Line Inspection
Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference
Ignition "ON".	IBU connector	36 (P-CAN high)	Chassis ground	-	Fig.1
Ignition "ON".	IBU connector	35 (P-CAN low)	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	IBU connector	36 (P-CAN high)	IBU connector	35 (P-CAN low)	Approx. 60Ω
	ECM (component side)	77 (P-CAN high)	ECM (component side)	60 (P-CAN low)	Approx. 120Ω
	ICU (component side)	9 (P-CAN high)	ICU (component side)	10 (P-CAN low)	Approx. 120Ω
	IBU connector	36 (P-CAN high)	ECM connector	77 (P-CAN high)	Approx. below 1Ω
	IBU connector	35 (P-CAN low)	ECM connector	60 (P-CAN low)	Approx. below 1Ω
Ignition "OFF". Disconnect the battery (-) terminal. Disconnect the electrical connector(s) of all concerned component to the related CAN system.	IBU connector	36 (P-CAN high)	Chassis ground	-	∞ (infinity)Ω
	IBU connector	35 (P-CAN low)	Chassis ground	-	∞ (infinity)Ω

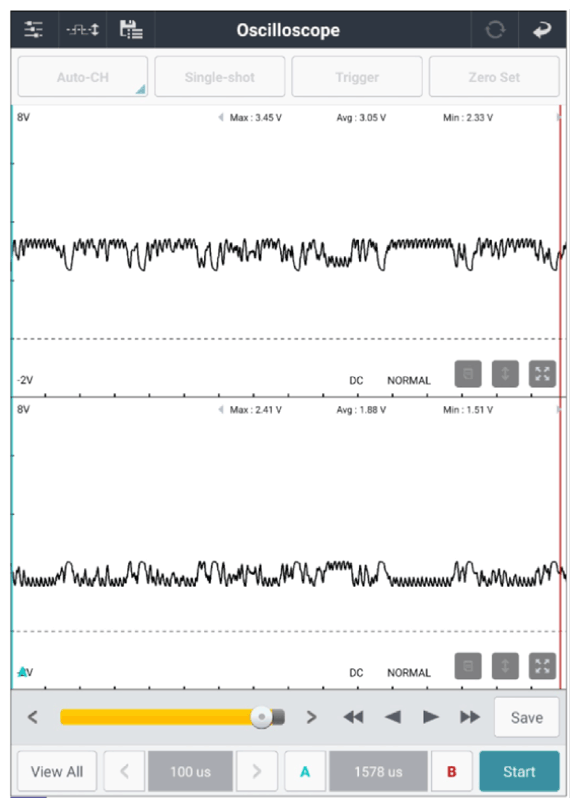

G13830441

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Module Circuit Inspection" procedure.

No Good

Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.

Module Circuit Inspection
Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	IBU connector	34, 35, 36, 37, 38 (power)	Chassis ground	-	B+
	IBU connector	18, 20 (ground)	Chassis ground	-	Approx. below 1Ω

Good

Go to "Component Inspection " procedure.
Repair as necessary and then Go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.
