Component Inspection

Inspection Condition	Inspection Procedure	Reference

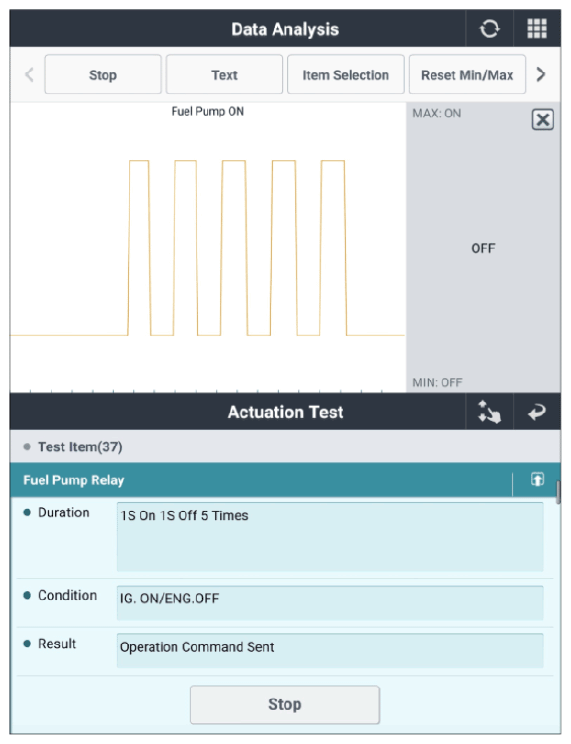

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Actuation Test" of concerned component with KDS.	Fig.1

G13829038

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. Repair or replace as necessary and then Go to "VERIFICATION OF REPAIR " procedure.

No Good

If no problems were found with the circuits or connectors, replace the fuel pump relay and Go to "VERIFICATION OF REPAIR " procedure.
If the failure still occur after replacing or repairing the fuel pump relay, replace the fuel pump and perform procedure "VERIFICATION OF REPAIR ".
