Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

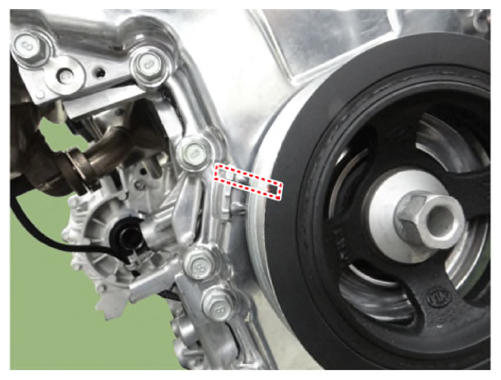

Rotate the crankshaft damper pulley clockwise so that the piston of cylinder 1 is located at the compression upper dead point to match the timing mark on the timing chain cover with the groove on the damper pulley.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the timing chain cover.
(Refer to " Removal ")

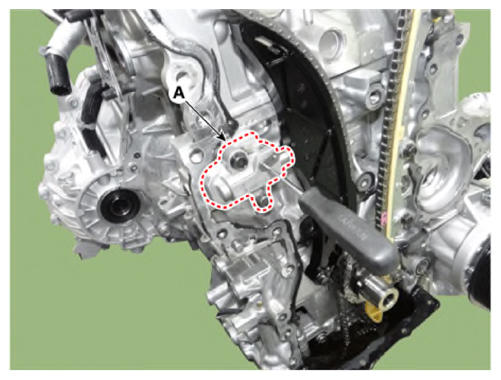

Remove the timing chain tensioner (A).

Courtesy of KIA MOTORS AMERICA, INC.

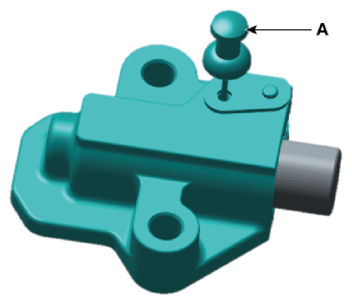

NOTE: Using a thin screwdriver, connect the timing chain tensioner, loosen the ratchet and secure the piston with a stopper pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

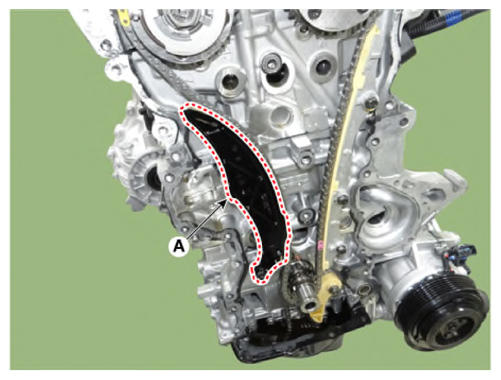

Remove the timing chain tensioner arm (A).

Courtesy of KIA MOTORS AMERICA, INC.

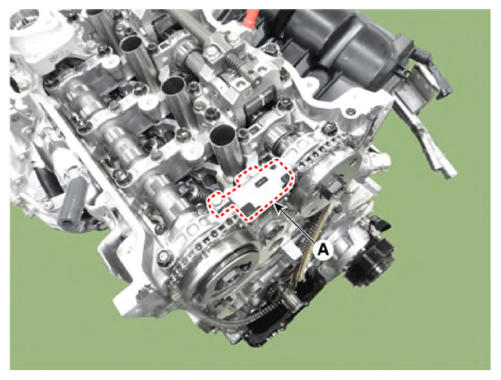

Remove the timing chain cam to cam guide (A).

Courtesy of KIA MOTORS AMERICA, INC.

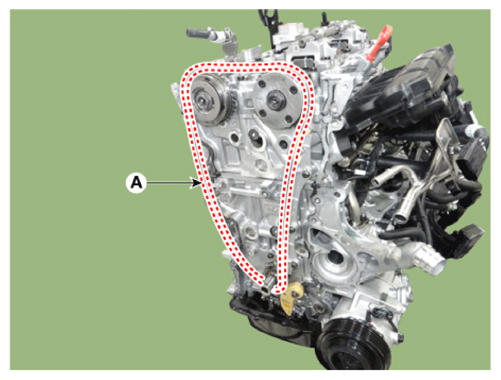

Remove the timing chain (A).

Courtesy of KIA MOTORS AMERICA, INC.

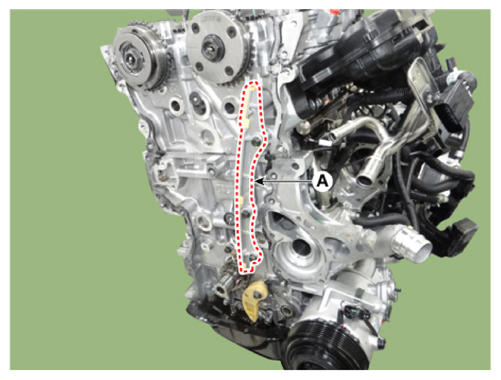

Remove the timing chain guide (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the oil pump chain.
(Refer to " Oil pump chain ")

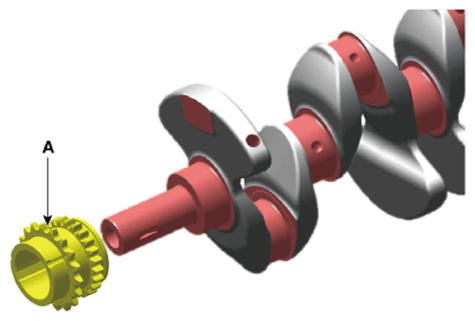

Remove the crankshaft sprocket (A)

Courtesy of KIA MOTORS AMERICA, INC.
