Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 6

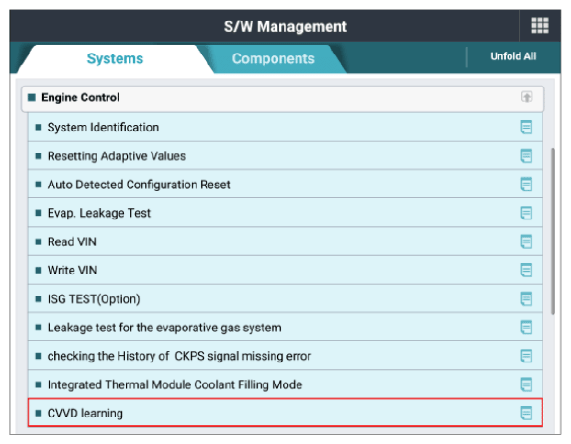

G13810122Courtesy of KIA MOTORS AMERICA, INC.

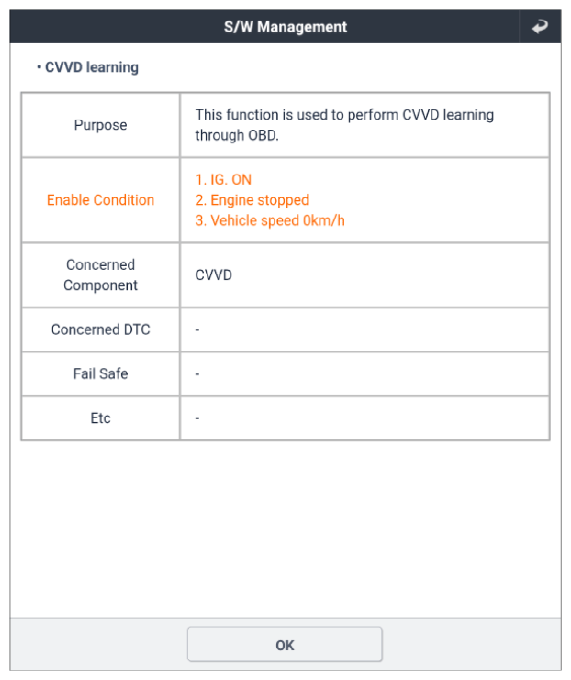

G13810123Courtesy of KIA MOTORS AMERICA, INC.

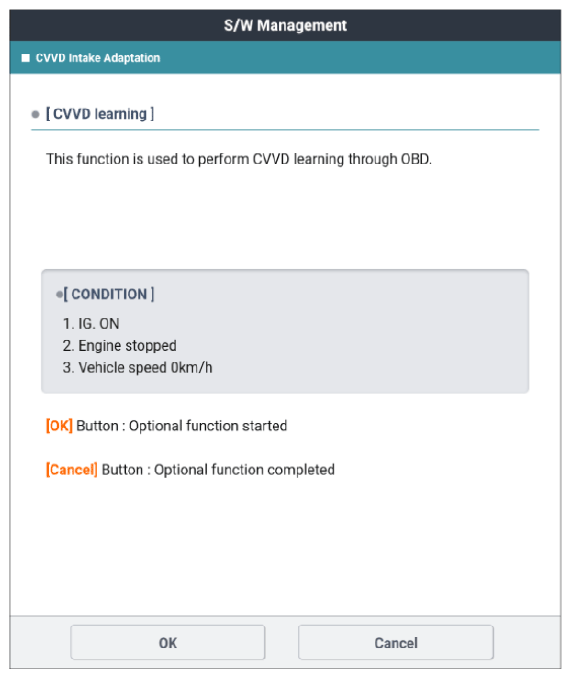

G13810124Courtesy of KIA MOTORS AMERICA, INC.

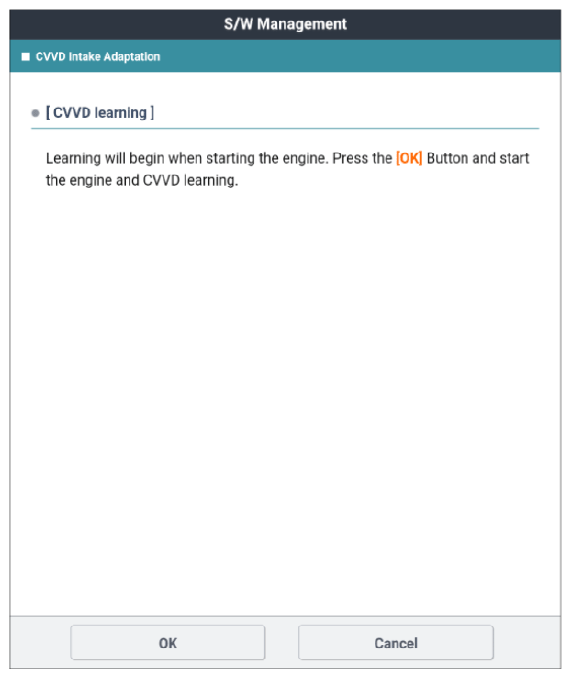

G13810125Courtesy of KIA MOTORS AMERICA, INC.
G13810126Courtesy of KIA MOTORS AMERICA, INC.
G13810127Courtesy of KIA MOTORS AMERICA, INC.
