Repair Procedures: Removal

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

Be careful not to damage the trim and panel.
Take care not to damage the paintwork of the body.

Remove the rear door pillar trim.
(Refer to " Replacement ")

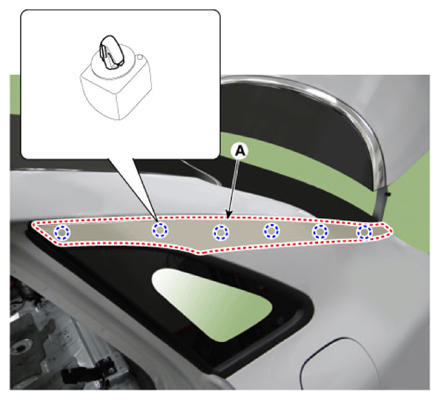

Using a screwdriver or remover, remove the C Pillar garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.

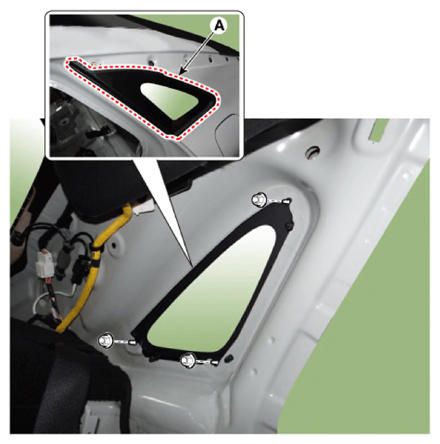

Loosen the mounting nuts and remove the quarter fixed glass (A).
Tightening torque:

3.9 - 4.4 N.m (0.4 - 0.45 kgf.m, 2.9 - 3.3 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Cut the quarter fixed glass sealant using a cutter knife.
