Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

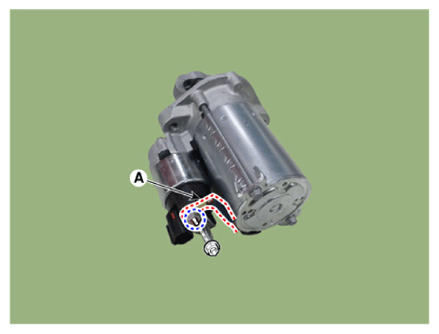

Disconnect the M-terminal (A) after removing the nut.

Courtesy of KIA MOTORS AMERICA, INC.

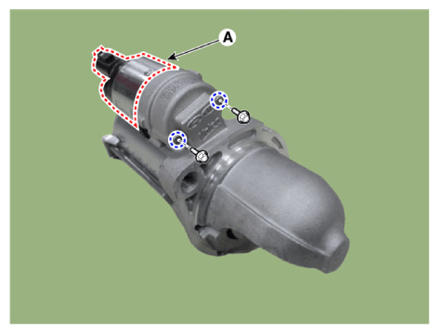

Remove the magnetic switch assembly (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

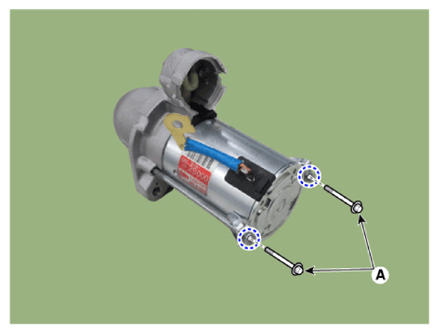

Remove the through bolts (A).

Courtesy of KIA MOTORS AMERICA, INC.

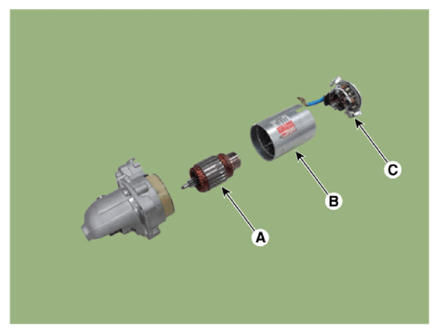

Separate the yoke assembly (A), armature assembly (B) and brush holder assembly (C).

Courtesy of KIA MOTORS AMERICA, INC.

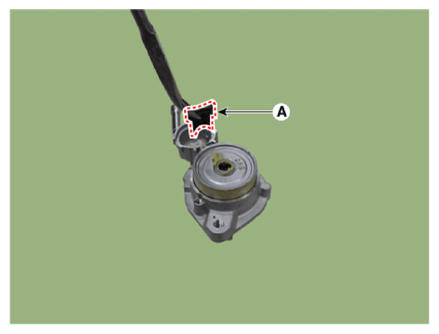

Remove the stop lever (A).

Courtesy of KIA MOTORS AMERICA, INC.

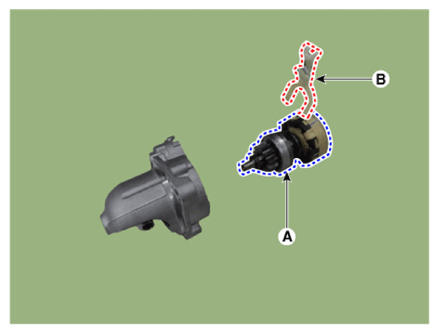

Remove the reducer assembly (A) and lever (B).

Courtesy of KIA MOTORS AMERICA, INC.
