Repair Procedures: Removal
- Remove the front drive shaft [RH].
(Refer to " Removal " )

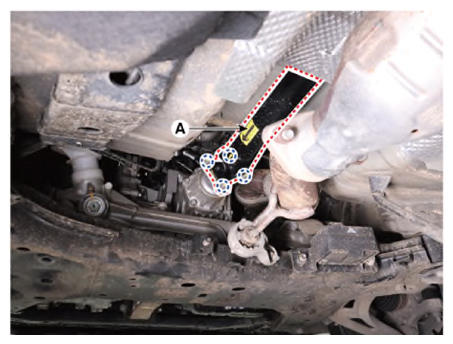

- Remove the propeller shaft (A) from transfer assembly after removing the bolts.
Tightening torque:
49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.1 - 50.6 lb.ft)
NOTE:- Do not reuse the bolts.
- Make a match mark on the propeller shaft flange and transfer flange before removing the bolts.
- If abnormal vibration and noise occur at high vehicle speeds after replacing transfer with a new one, balance the propeller shaft with a balancing machine.

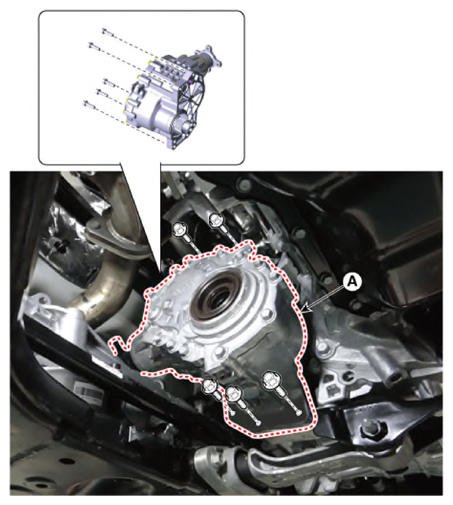

- Remove the transfer assembly (A) after removing the bolts.
Tightening torque:
60.8 - 65.7 N.m (6.2 - 6.7 kgf.m, 44.8 - 48.4 lb.ft)
