Repair Procedures: Replacement

Remove the engine room under cover.
(Refer to " Removal and Installation ")

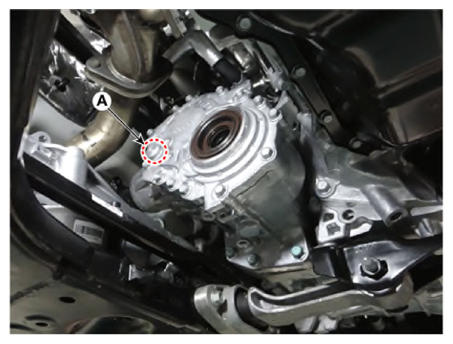

Remove the drain plug (A) and wait for over 10 minutes until the oil is drained enough and then reinstall the drain plug.
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing oil filler plug gasket must be replaced with a new one (do not reuse).
Fill the transfer with oil through the filler plug hole after removing the filler plug (A).
Recommended oil : Hypoid gear oil API GL-5, SAE 75W/85 (SK HCT-5 75W/85 or equivalent)

Capacity : 0.65 * (0.17 U.S.gal, 0.69 U.S.qt, 0.57 lmp, qt)

Courtesy of KIA MOTORS AMERICA, INC.
Install the filler plug (A).
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing oil filler plug gasket must be replaced with a new one (do not reuse).
Install the under cover.
(Refer to " Removal and Installation ")
