Repair Procedures: Removal

  1. You should read the specification information for the front view camera that is installed in the vehicle before replacing it witha new front view camera.
    1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the Diagnostic tool.
    2. Select the 'S/W Management' and 'Car model'.
    3. Select "Front View Camera" and "System Identification".
  2. Disconnect the negative battery terminal.
  3. Using a screwdriver or remover, remove the mirror wiring cover (A).

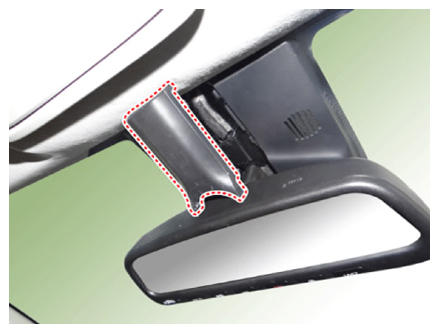

    G13375258Courtesy of KIA MOTORS AMERICA, INC.

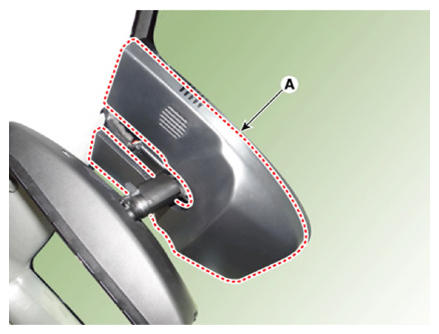

    G13375259Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the front camera unit connector (A).

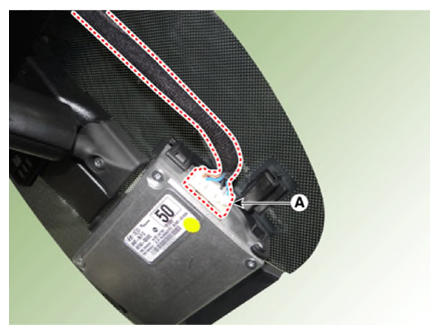

    G13375260Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the front camera unit (B) by pulling out lock pins (A).

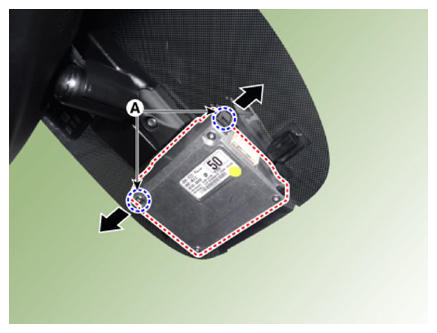

    G13375261Courtesy of KIA MOTORS AMERICA, INC.

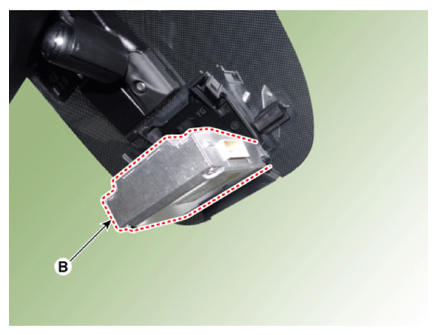

    G13375262Courtesy of KIA MOTORS AMERICA, INC.
