Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

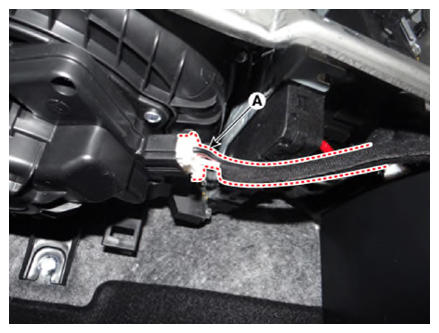

  3. Disconnect the blower motor connector (A).
    G13375144Courtesy of KIA MOTORS AMERICA, INC.

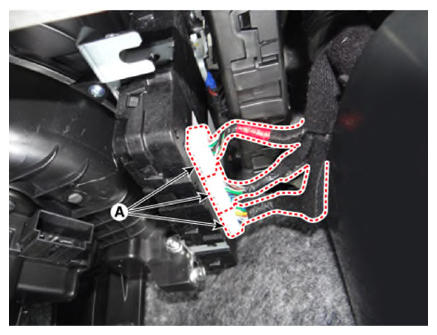

  4. Disconnect the body control module connectors (A).
    G13375145Courtesy of KIA MOTORS AMERICA, INC.

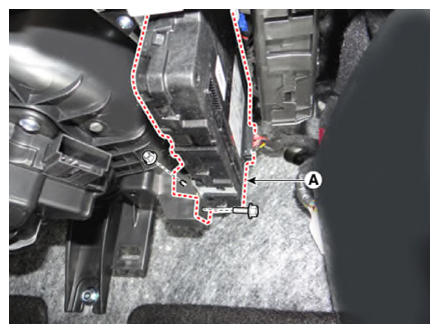

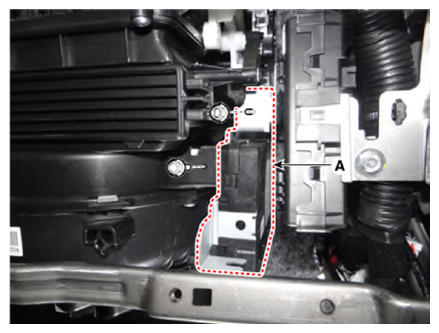

  5. Remove the body control module (A) after loosening the mounting bolts and nuts.
    G13375146Courtesy of KIA MOTORS AMERICA, INC.
    G13375147Courtesy of KIA MOTORS AMERICA, INC.

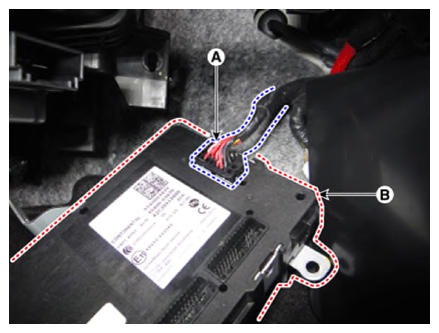

  6. Remove the body control module (B) after disconnecting the connector (A).
    G13375148Courtesy of KIA MOTORS AMERICA, INC.
