Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

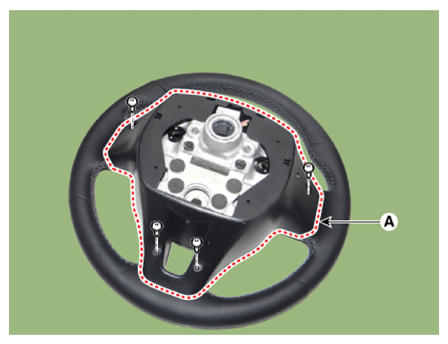

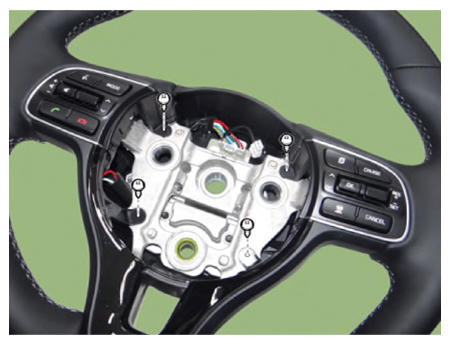

  3. Remove the steering back cover (A) after loosening the mounting screws.
    G13377285Courtesy of KIA MOTORS AMERICA, INC.
    G13377286Courtesy of KIA MOTORS AMERICA, INC.

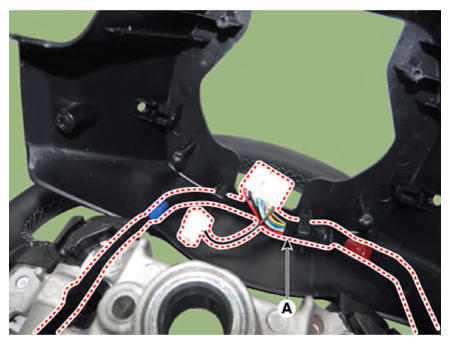

  4. Remove the wiring connector (A) from the steering back cover.
    G13377287Courtesy of KIA MOTORS AMERICA, INC.

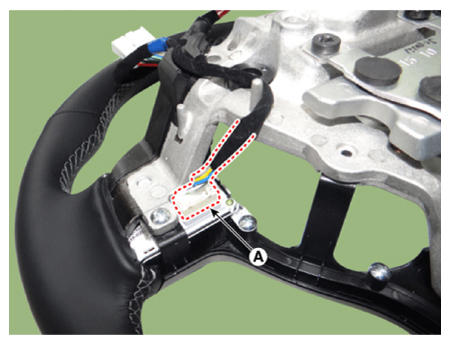

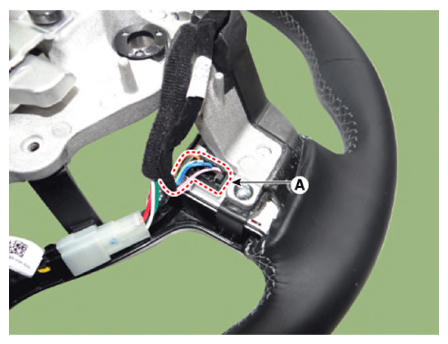

  5. Disconnect the steering wheel remote control connector (A).

    [LH]

    G13377288Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G13377289Courtesy of KIA MOTORS AMERICA, INC.

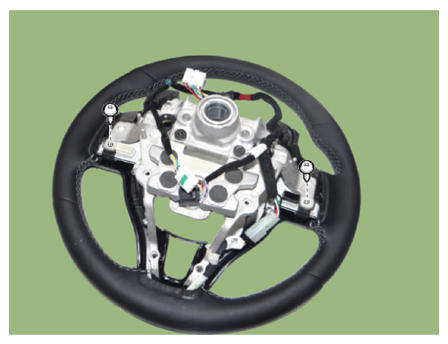

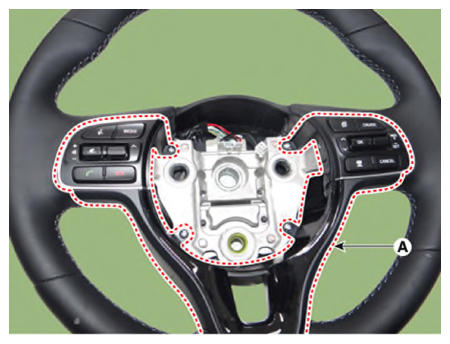

  6. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.
    G13377290Courtesy of KIA MOTORS AMERICA, INC.
    G13377291Courtesy of KIA MOTORS AMERICA, INC.

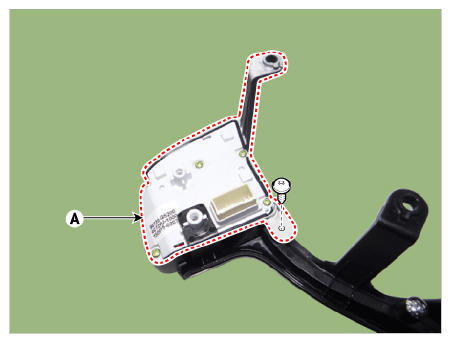

  7. Remove the steering wheel remote control (A) after loosening the mounting screws.

    [RH]

    G13377292Courtesy of KIA MOTORS AMERICA, INC.
