FixVault
Home
›
Kia
›
2021
›
Niro EV EX
›
Repair and Diagnosis
›
Accessories & Equipment
›
Cruise Control Systems
›
Cruise Control System
›
Cruise Control Switch
›
Schematic Diagrams
›
Connector And Terminal Function
Connector And Terminal Function

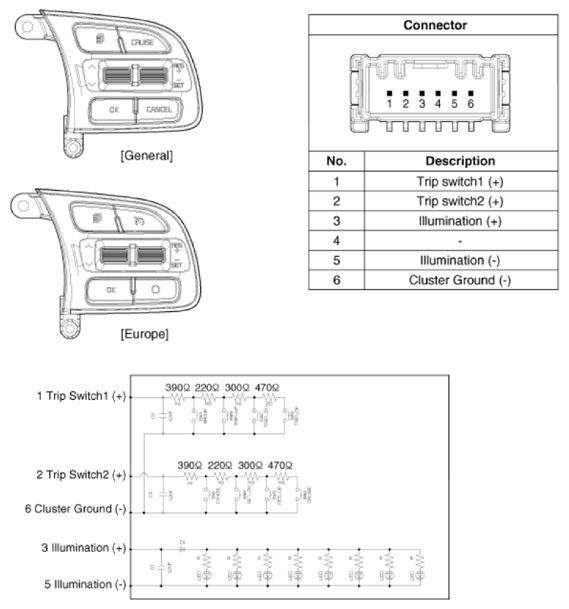

[Trip + Cruise]
Courtesy of KIA MOTORS AMERICA, INC.

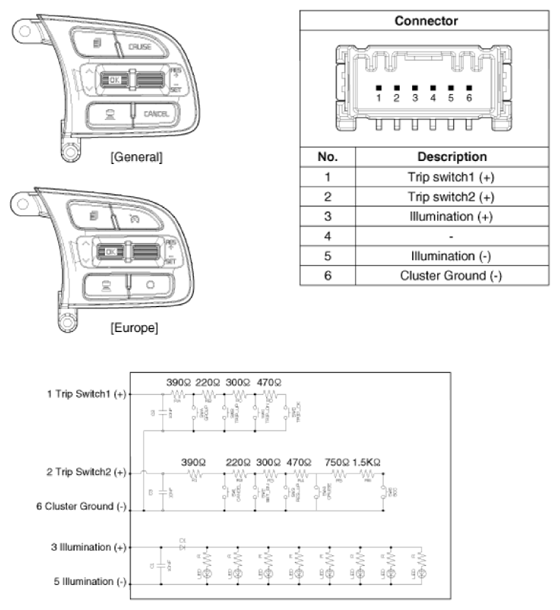

[Trip + Cruise + SCC]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
