Smart Key Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

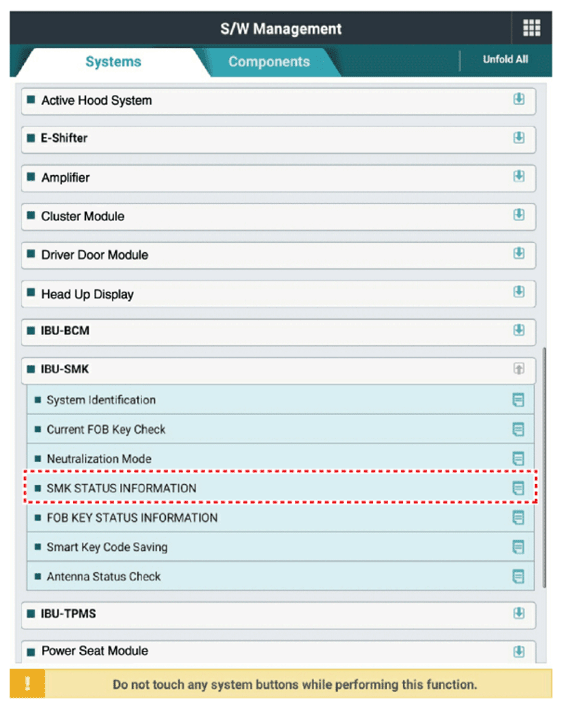

    G13375750Courtesy of KIA MOTORS AMERICA, INC.

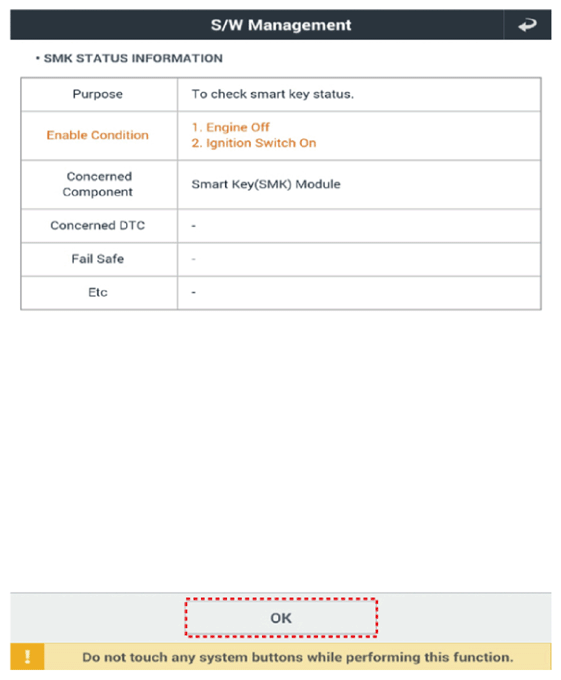

    G13375751Courtesy of KIA MOTORS AMERICA, INC.

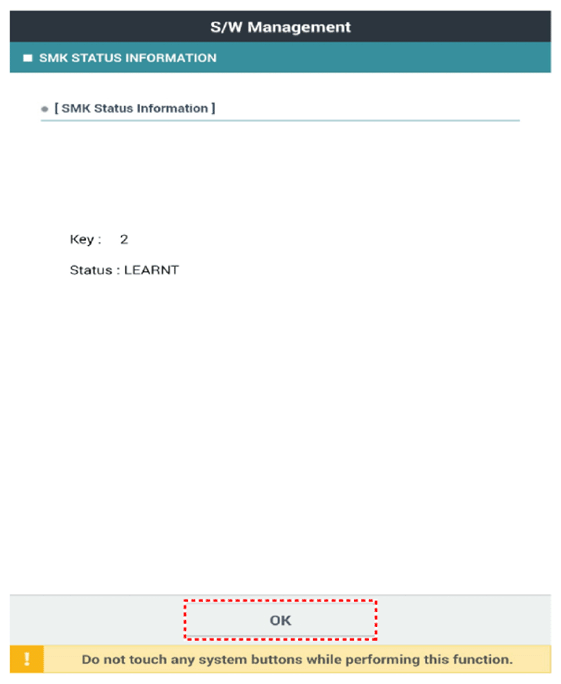

    G13375752Courtesy of KIA MOTORS AMERICA, INC.
