Tailgate Open Switch

  1. Remove the tailgate lid trim.

    (Refer to Tailgate - "TAILGATE TRIM ")

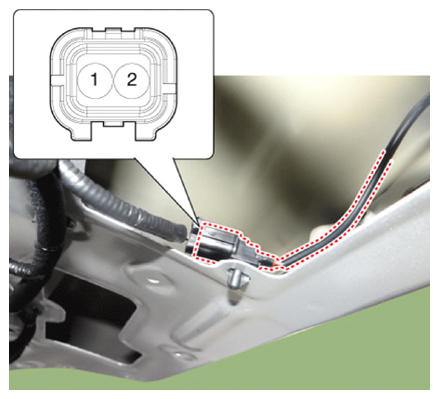

  2. Check for continuity between the tailgate open switch terminals.
    G13375722Courtesy of KIA MOTORS AMERICA, INC.
  3. If continuity is not specified, inspect the switch
    G13375723Courtesy of KIA MOTORS AMERICA, INC.
