Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

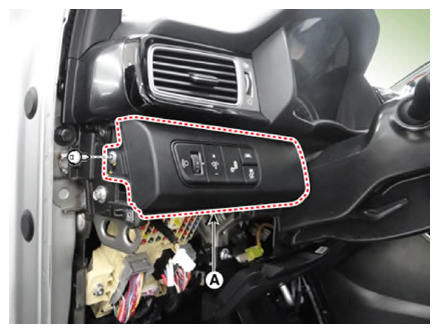

  3. Remove the crash pad plate [LH] (A) after loosening the screws.
    G13374450Courtesy of KIA MOTORS AMERICA, INC.

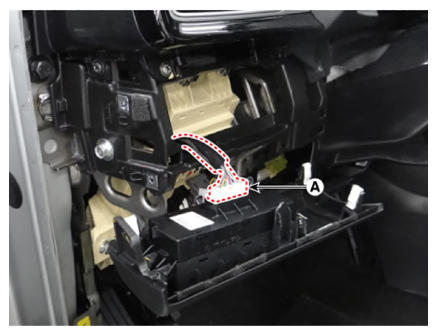

  4. Disconnect the crash pad side switch connector (A).
    G13374451Courtesy of KIA MOTORS AMERICA, INC.

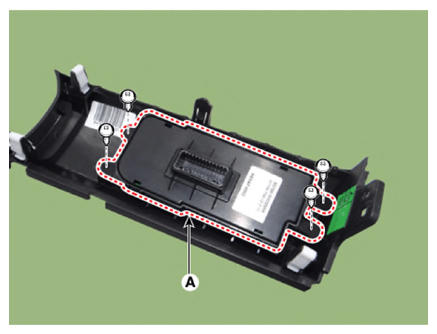

  5. Remove the crash pad side switch (A) after loosening the screws.
    G13374452Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
