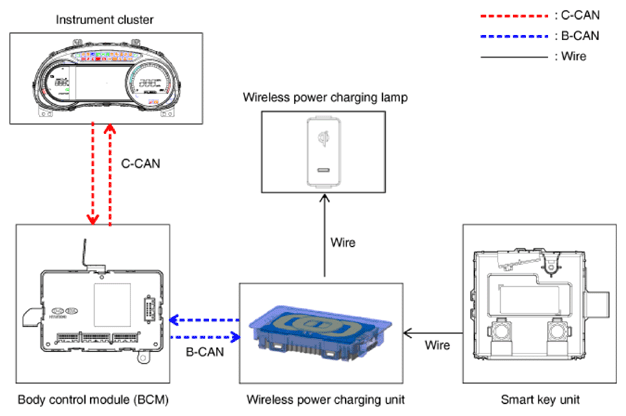

System Configuration Diagram

Courtesy of KIA MOTORS AMERICA, INC.

1. Instrument cluster: Alerts about contact with mobile phone
2. BCM unit: Determines contact with mobile phone
3. Wireless charging lamp: Displays the charging status
4. SMK unit: Stops charging during the activation of LF
