Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad garnish assembly [RH].

    (Refer to Body - "CRASH PAD GARNISH [RH] ")

  3. Remove the start/stop button.

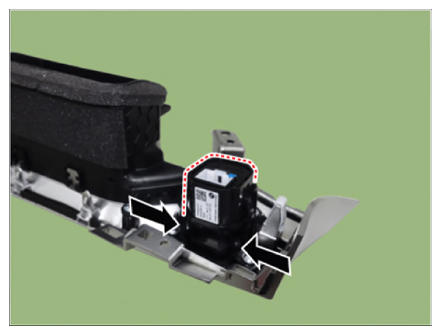

    1. Push the fixed hooks.
      G13375196Courtesy of KIA MOTORS AMERICA, INC.

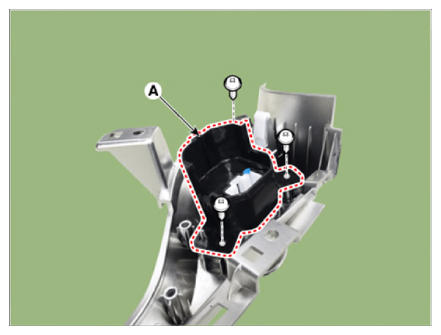

    2. Remove the start/stop button bracket (A) after loosening the mounting screws.
      G13375197Courtesy of KIA MOTORS AMERICA, INC.

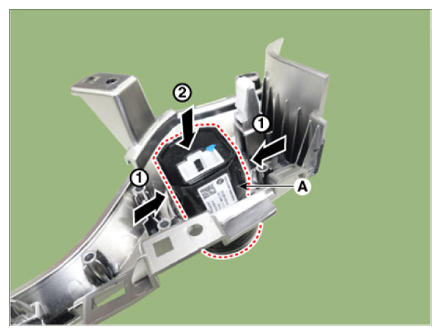

    3. Remove the start/stop button (A) by pressing it in the direction of arrow after pushing the fixed hooks.
      G13375198Courtesy of KIA MOTORS AMERICA, INC.
