Off-Line on KDS
WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

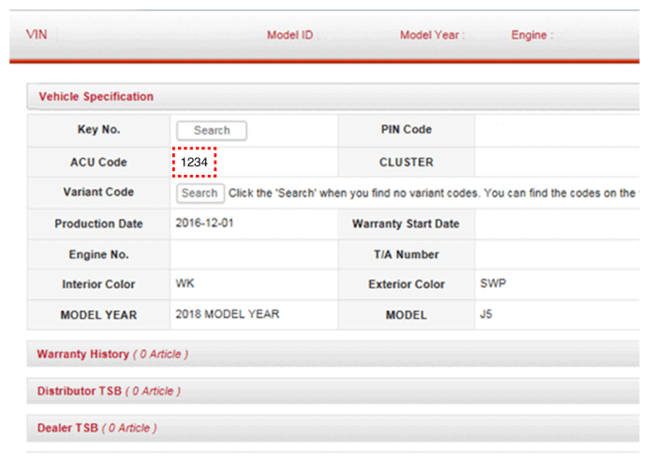

- Confirm the ACU variant coding code from the GSW server after inputting the VIN to the GSW sever.
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Switch "OFF" ignition, and connect KDS.
- With ignition "ON" & Engine "OFF", select vehicle name and airbag system.

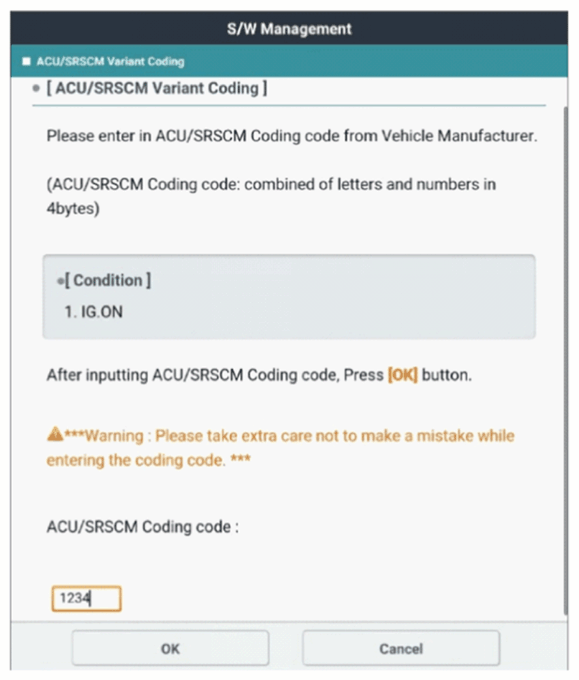

- Select Variant coding mode.
- Input the ACU coding code.
 Courtesy of KIA MOTORS AMERICA, INC.
|
