Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Using a screwdriver or remover, remove the mirror wiring cover (A).

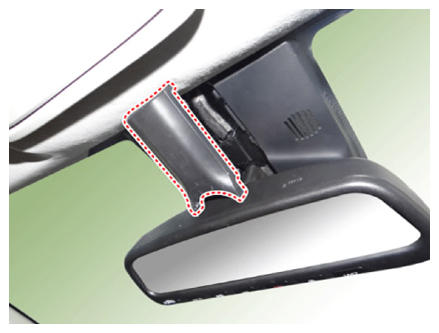

    G13204374Courtesy of KIA MOTORS AMERICA, INC.

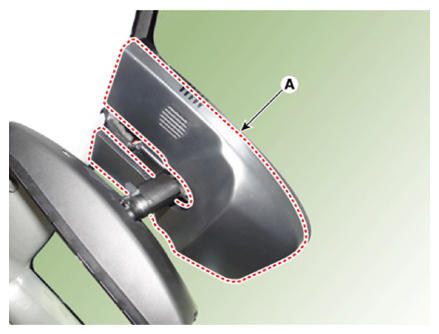

    G13204375Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the front camera unit connector (A).

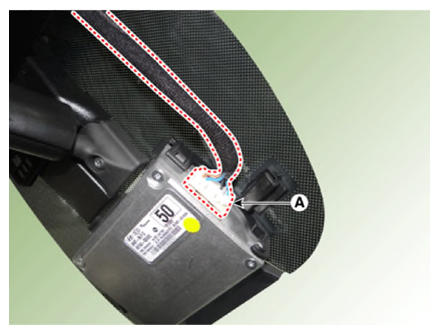

    G13204376Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the front camera unit (B) by pulling out lock pins (A).

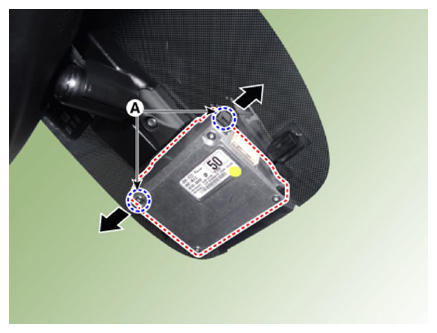

    G13204377Courtesy of KIA MOTORS AMERICA, INC.

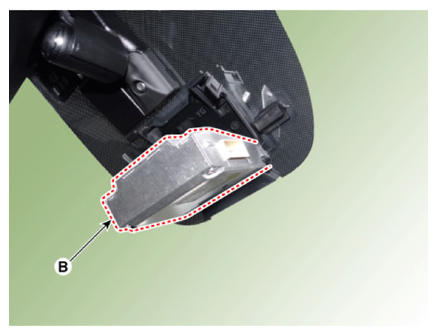

    G13204378Courtesy of KIA MOTORS AMERICA, INC.
