Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

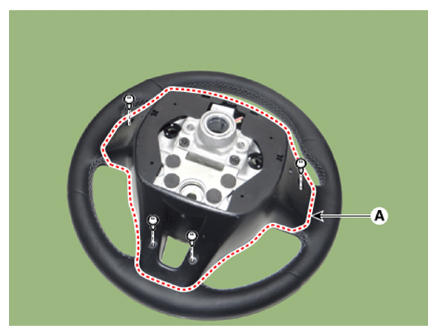

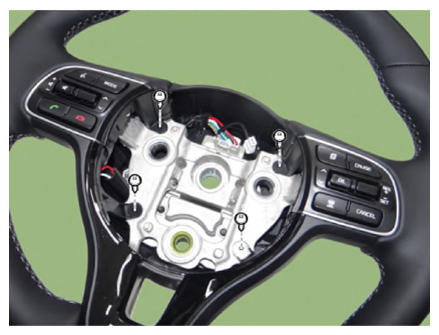

  3. Remove the steering back cover (A) after loosening the mounting screws.
    G13204014Courtesy of KIA MOTORS AMERICA, INC.
    G13204015Courtesy of KIA MOTORS AMERICA, INC.

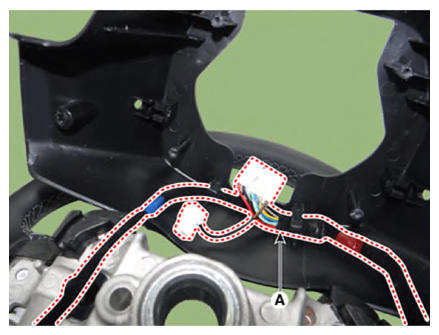

  4. Remove the wiring connector (A) from the steering back cover.
    G13204016Courtesy of KIA MOTORS AMERICA, INC.

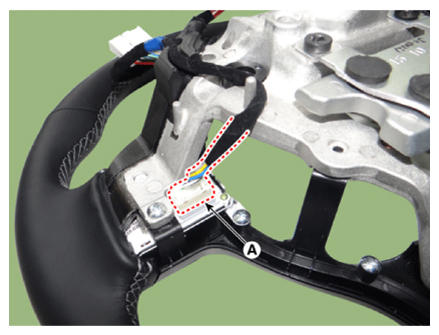

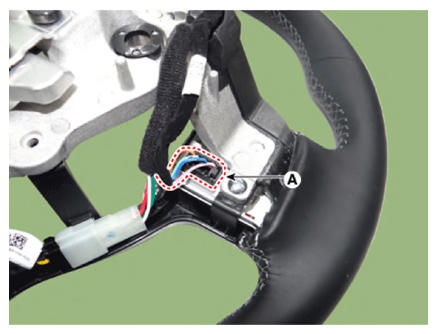

  5. Disconnect the steering wheel remote control connector (A).

    [LH]

    G13204017Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G13204018Courtesy of KIA MOTORS AMERICA, INC.

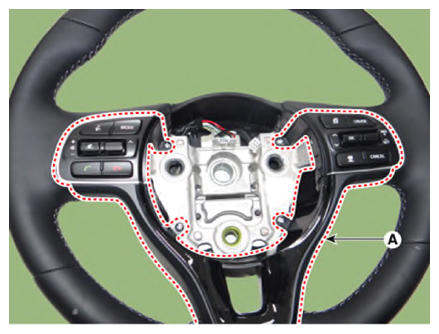

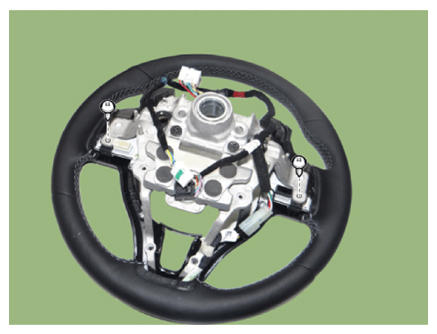

  6. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.
    G13204019Courtesy of KIA MOTORS AMERICA, INC.
    G13204020Courtesy of KIA MOTORS AMERICA, INC.

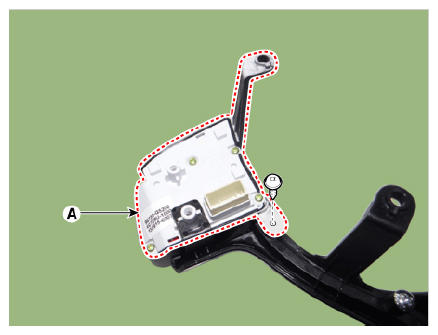

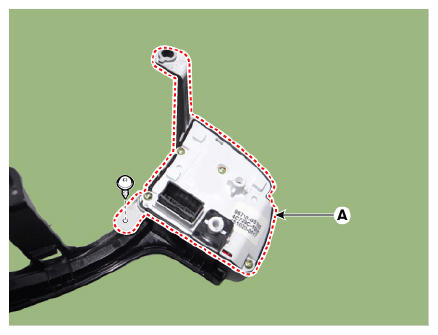

  7. Remove the steering wheel remote control (A) after loosening the mounting screws.

    [LH]

    G13204021Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G13204022Courtesy of KIA MOTORS AMERICA, INC.
