Calibration procedure
WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
- Check for vehicle alignment and tire pressure for accurate camera calibration.
- Windshield must be clean and free of any dirt or object.
- Calibration target installation procedure as follows:

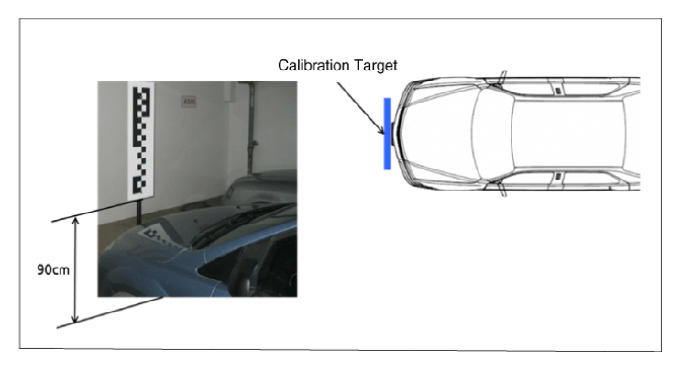

- Set the calibration target height approx. 90cm ± 2cm from the ground and align the center of target with center line of vehicle.
- Center of target and center of vehicle should be within ±5cm.
- Position the calibration target approx. 0cm from the center of vehicle front wheel. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1°. (close range target setting)
- Perform distance target setting after performing close target setting.

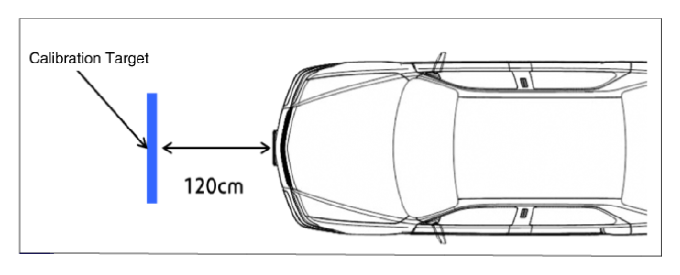

- Position the calibration target 1.2M from the front bumper. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1°. (far range target setting)
