Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

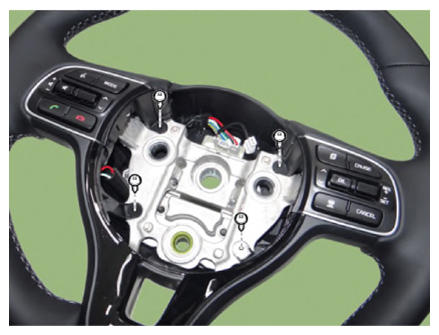

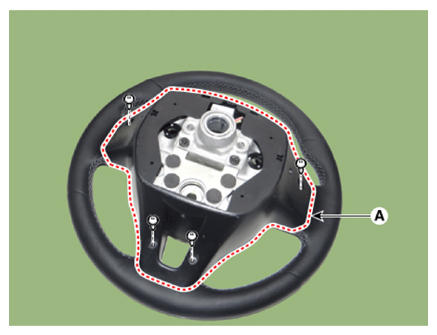

  3. Remove the steering back cover (A) after loosening the mounting screws.
    G13204216Courtesy of KIA MOTORS AMERICA, INC.
    G13204217Courtesy of KIA MOTORS AMERICA, INC.

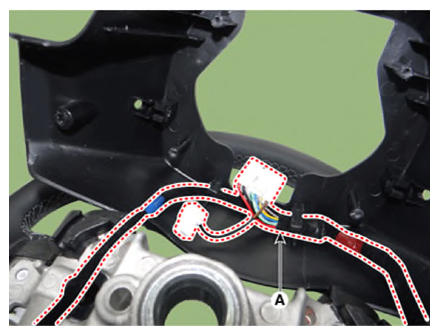

  4. Remove the wiring connector (A) from the steering back cover.
    G13204218Courtesy of KIA MOTORS AMERICA, INC.

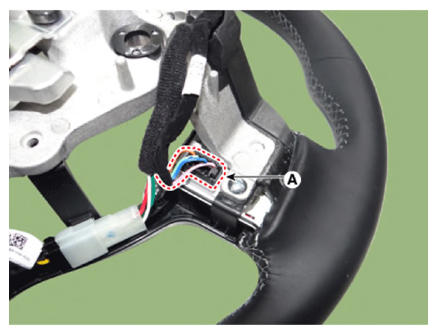

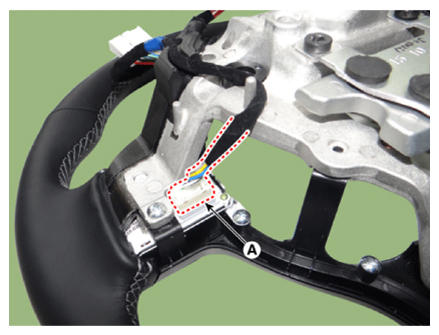

  5. Disconnect the steering wheel remote control connector (A).

    [LH]

    G13204219Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G13204220Courtesy of KIA MOTORS AMERICA, INC.

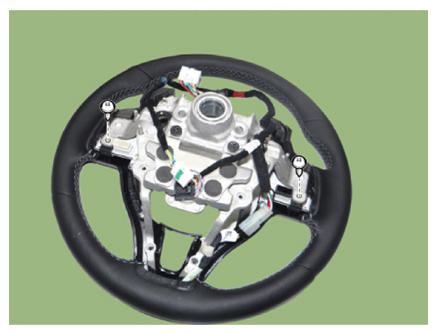

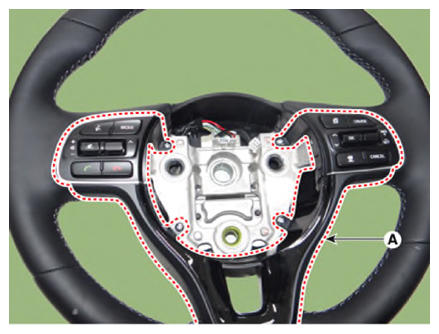

  6. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.
    G13204221Courtesy of KIA MOTORS AMERICA, INC.
    G13204222Courtesy of KIA MOTORS AMERICA, INC.

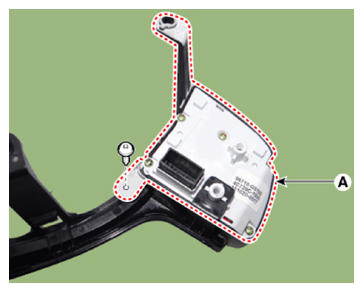

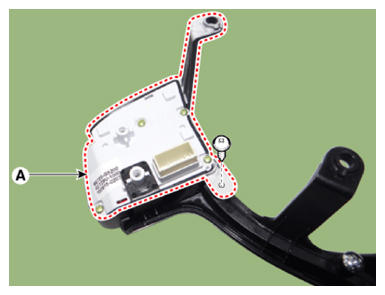

  7. Remove the steering wheel remote control (A) after loosening the mounting screws.

    [LH]

    G13204223Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G13204224Courtesy of KIA MOTORS AMERICA, INC.
