Neutralization Status Check

Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

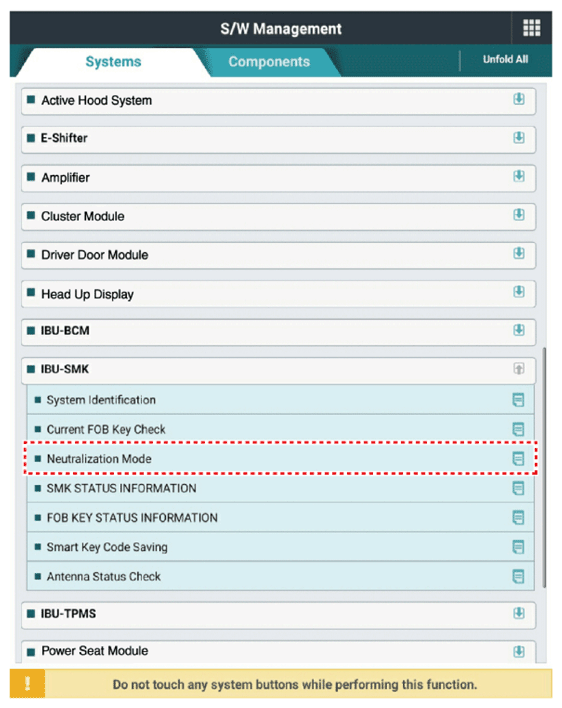

G13438973

Courtesy of KIA MOTORS AMERICA, INC.

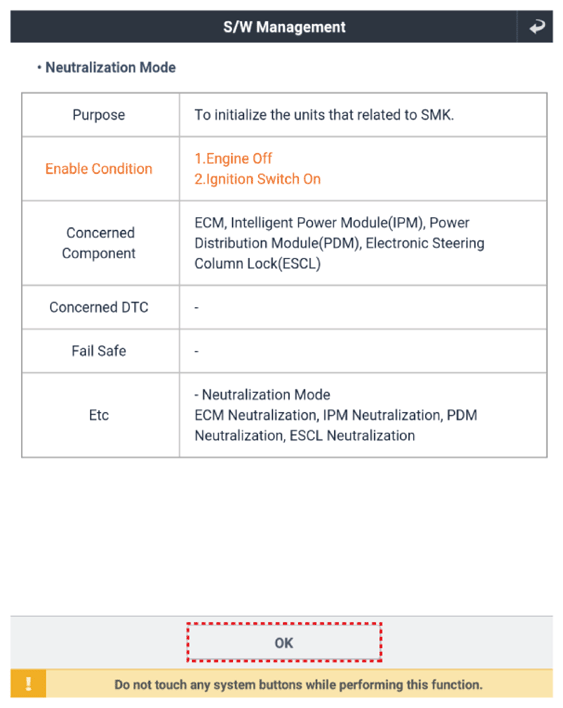

G13438974

Courtesy of KIA MOTORS AMERICA, INC.

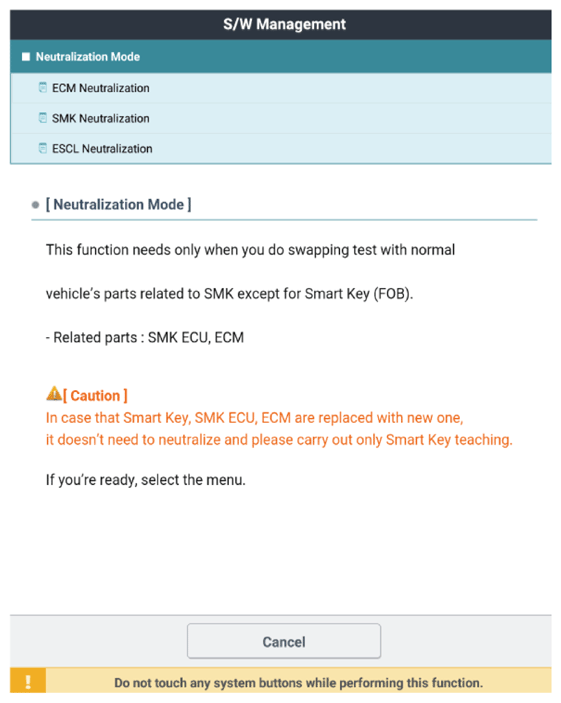

G13438975

Courtesy of KIA MOTORS AMERICA, INC.

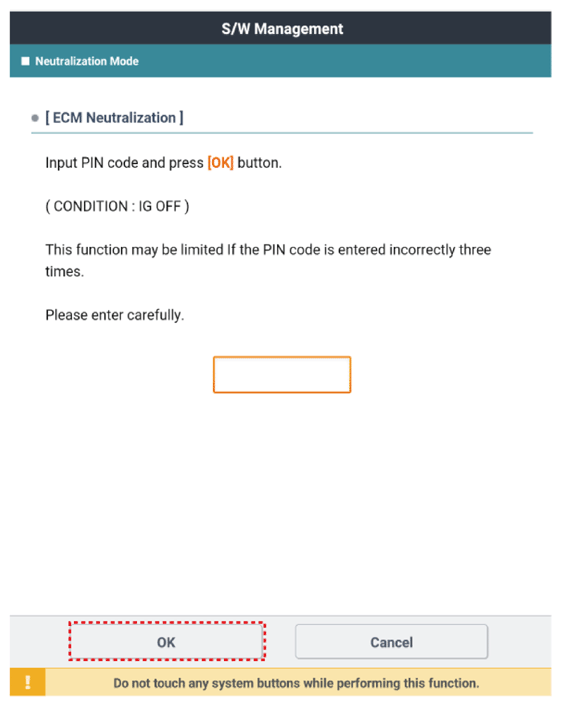

G13438976

Courtesy of KIA MOTORS AMERICA, INC.

G13438977

Courtesy of KIA MOTORS AMERICA, INC.

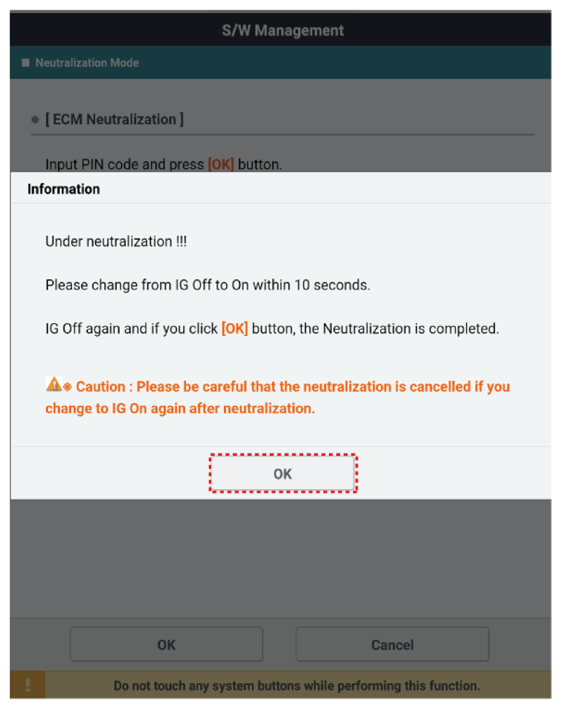

G13438978

Courtesy of KIA MOTORS AMERICA, INC.

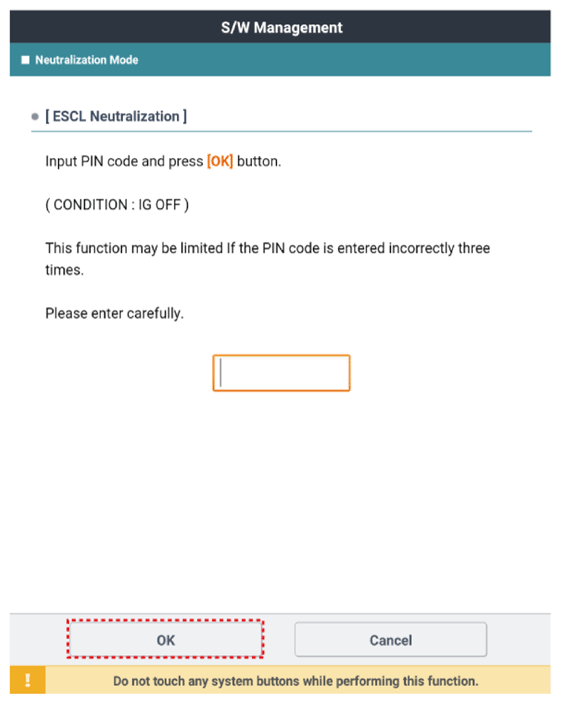

G13438979

Courtesy of KIA MOTORS AMERICA, INC.

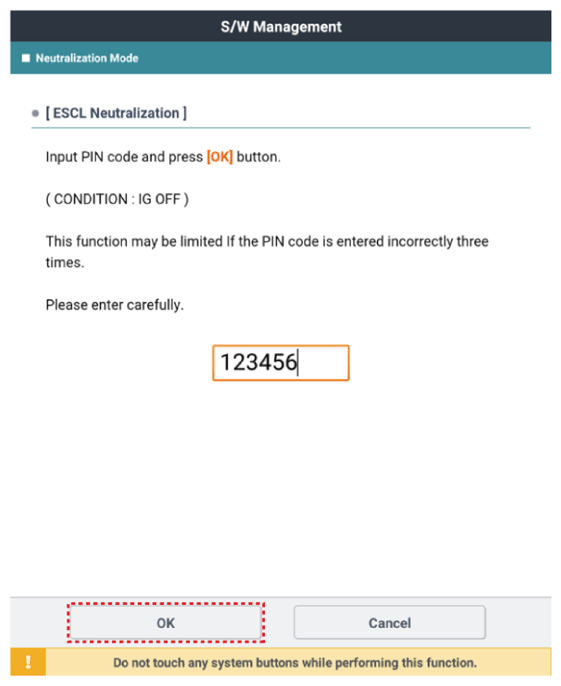

G13438980

Courtesy of KIA MOTORS AMERICA, INC.

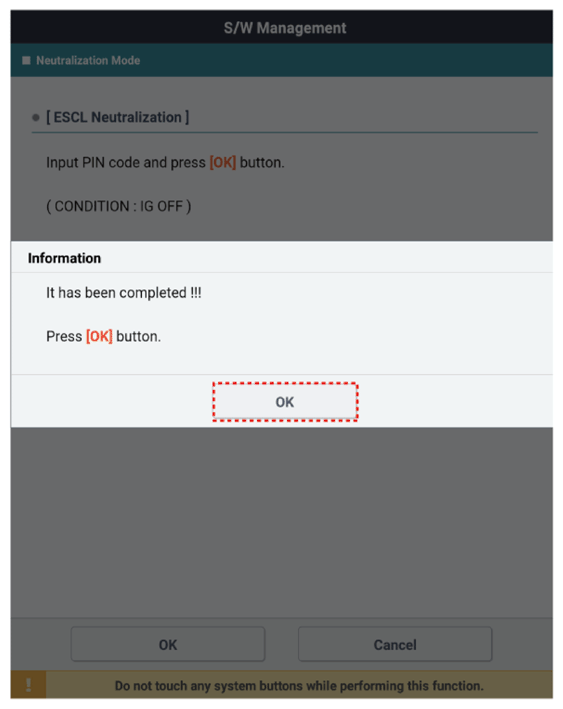

G13438981

Courtesy of KIA MOTORS AMERICA, INC.

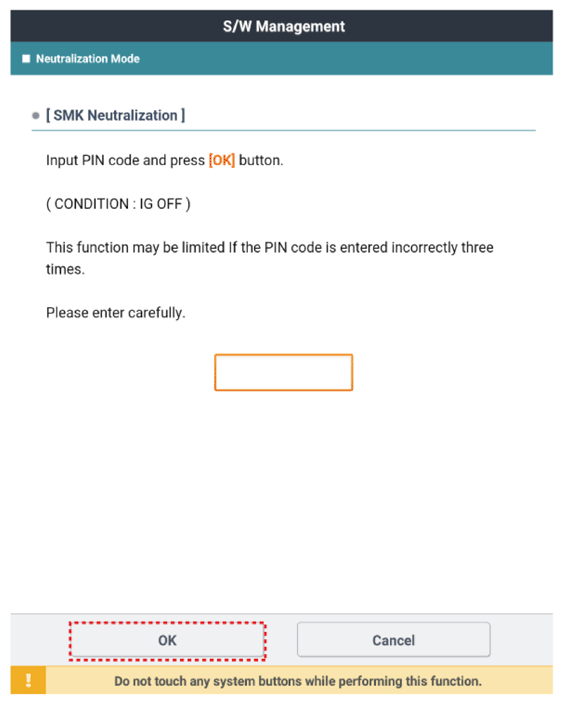

G13438982

Courtesy of KIA MOTORS AMERICA, INC.

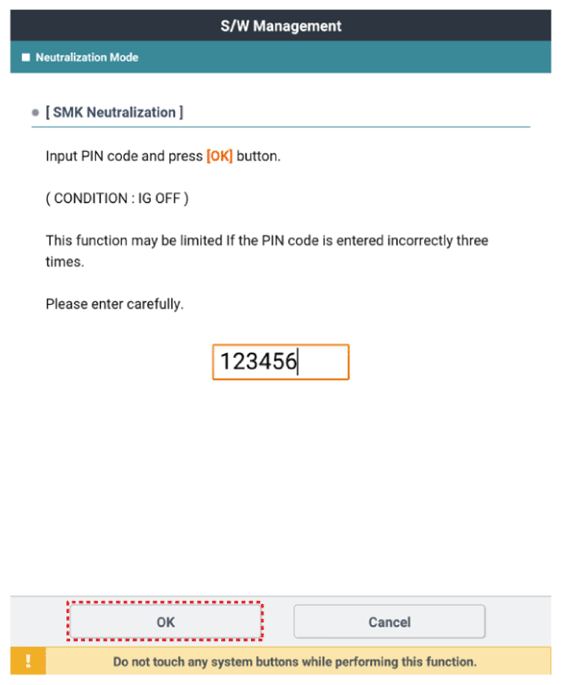

G13438983

Courtesy of KIA MOTORS AMERICA, INC.

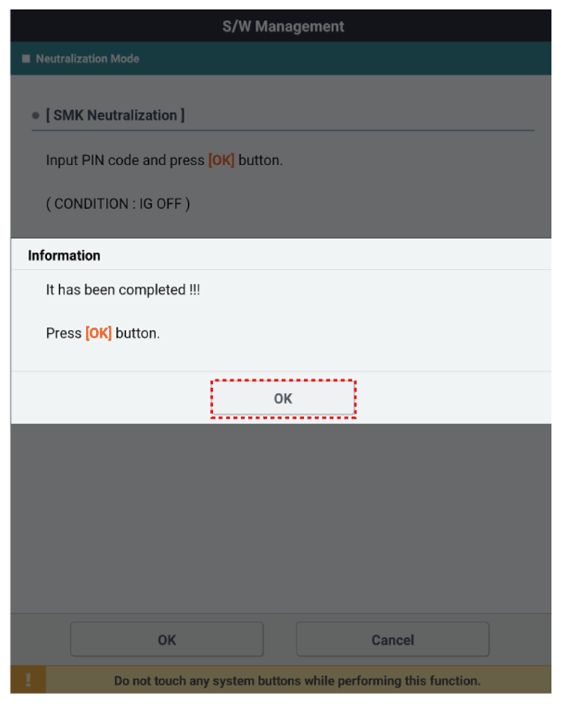

G13438984

Courtesy of KIA MOTORS AMERICA, INC.
