FixVault
Home
›
Kia
›
2021
›
Niro LX
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Power Windows (HEV)
›
Power Window Motor
›
Schematic Diagrams
›

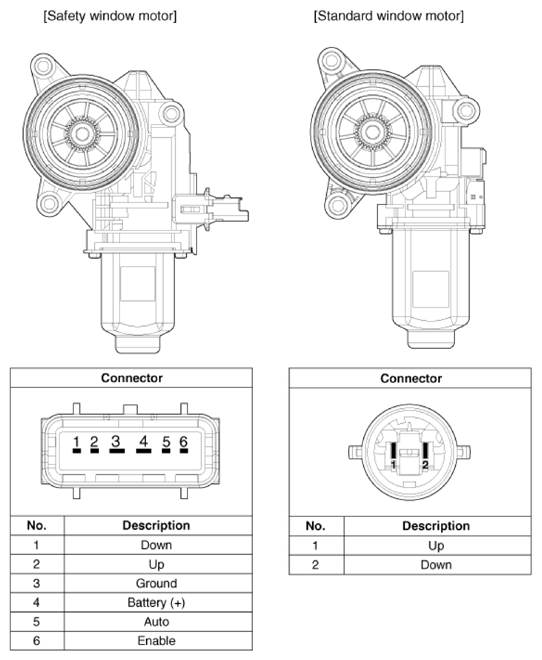

Connector And Terminal Function
Connector And Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
