Repair Procedures: Disassembly

Disconnect the negative battery cable.
Remove the steering wheel assembly.
(Refer to "REMOVAL ")
Loosen the screw and then remove the steering back cover.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

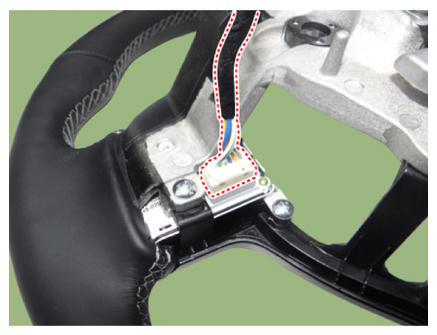

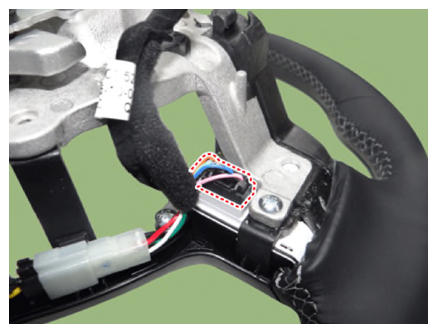

Disconnect the remote control switch connector.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the screw and then remove the remote control switch.

Courtesy of KIA MOTORS AMERICA, INC.

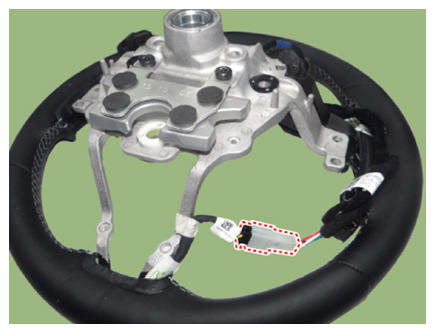

Disconnect the heated pad connector.

Courtesy of KIA MOTORS AMERICA, INC.

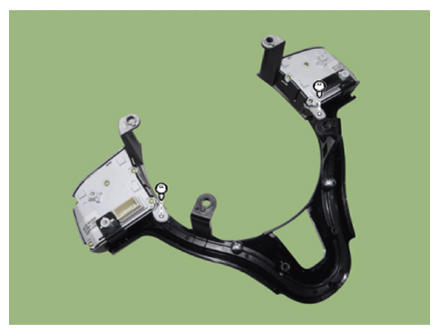

Loosen the screw and then remove the remote control switch from the bezel.

Courtesy of KIA MOTORS AMERICA, INC.

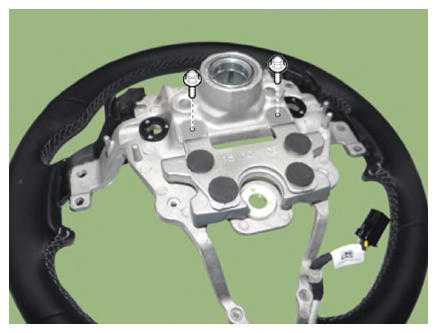

Loosen the bolts and then remove the damper.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
