Dual Clutch Transmission Control System (HEV)
›
Clutch Actuator Assembly
›
Components And Components Location
›
Components
Components And Components Location: Components

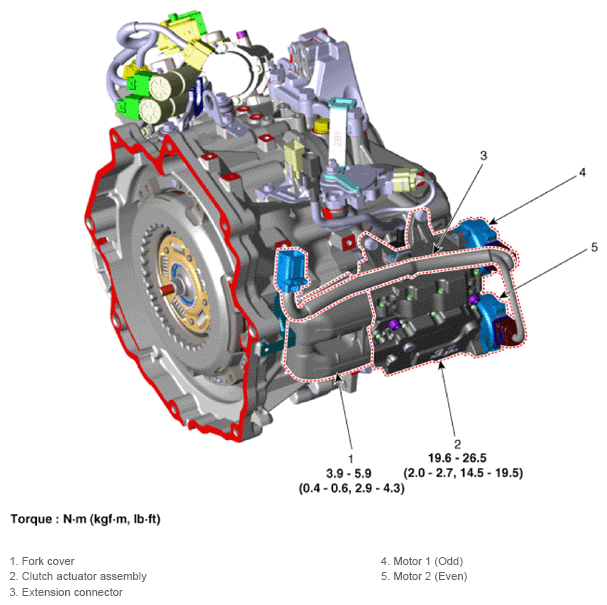

Fig 1: Clutch Actuator Assembly Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
