Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

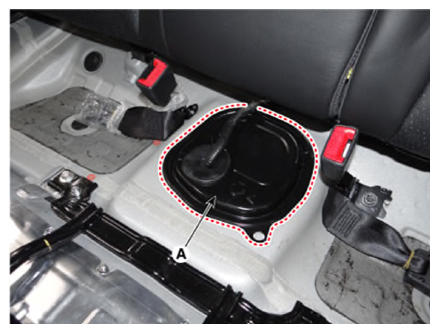

  3. Fuel pump service cover (A).
    G13436741Courtesy of KIA MOTORS AMERICA, INC.

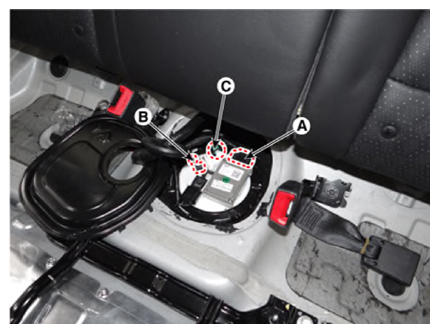

  4. Remove the fuel pump control module connector (A).
  5. Disconnect the fuel pressure sensor connector (B).
  6. Disconnect the fuel feed tube quick-connector (C).
    G13436742Courtesy of KIA MOTORS AMERICA, INC.

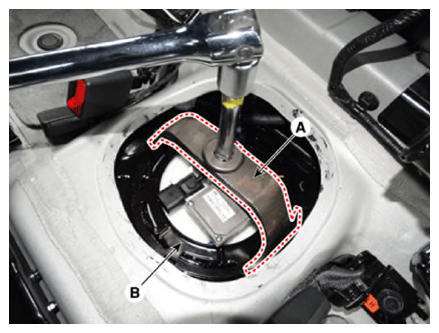

  7. Remove the fuel pump plate cover (B) by using the special service tool (A) [SST NO.:09310-B8100].
    G13436743Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the fuel pump (A).
    G13436744Courtesy of KIA MOTORS AMERICA, INC.
