FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.

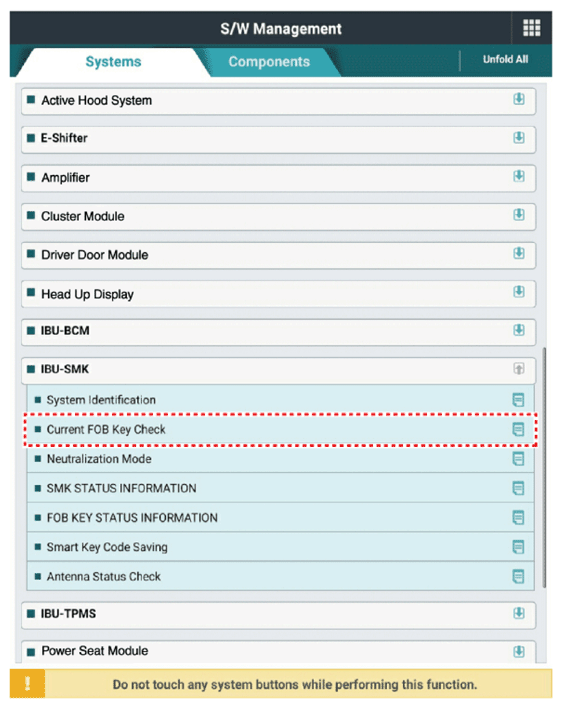

  2. After IG ON, select the "FOB KEY STATUS INFO".
    G13351407Courtesy of KIA MOTORS AMERICA, INC.

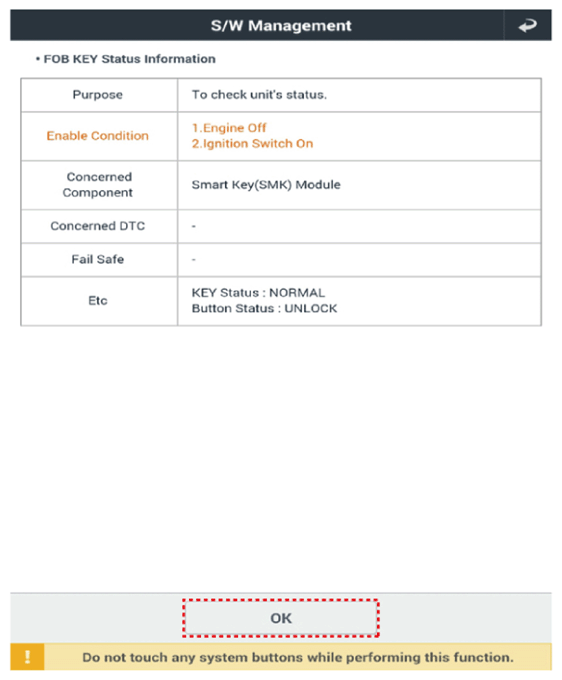

    G13351408Courtesy of KIA MOTORS AMERICA, INC.

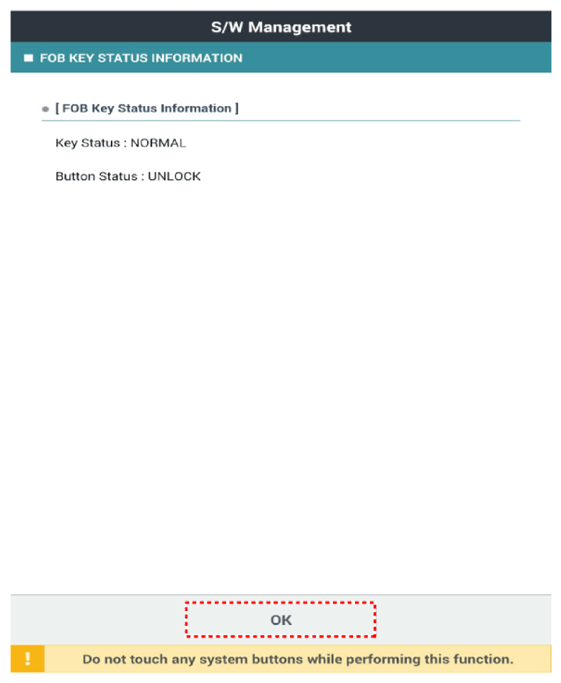

    G13351409Courtesy of KIA MOTORS AMERICA, INC.
