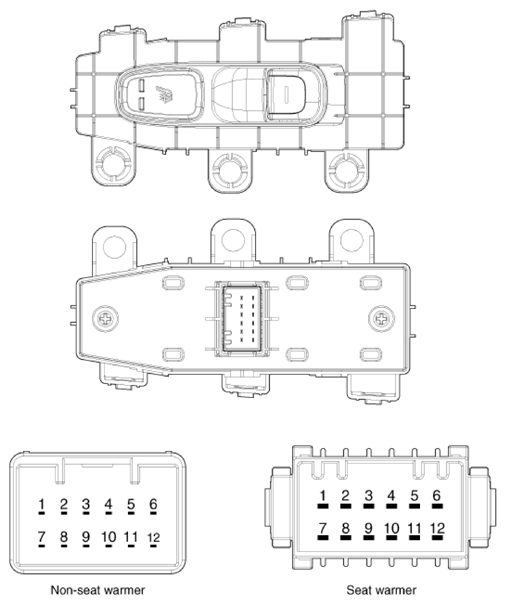

Rear Power Window Switch
| Pin | Function | |
|---|---|---|
| Non-seat warmer | Seat warmer | |
| 1 | Tail lamp | Window up |
| 2 | Window down (Left) | Seat warmer indicator (High) |
| 3 | - | Seat warmer indicator (Low) |
| 4 | - | Tail lamp |
| 5 | - | Seat warmer switch battery (+) |
| 6 | Window down | Window down |
| 7 | Ground | Window up (Left) |
| 8 | Window up (Left) | Ground |
| 9 | - | Ground |
| 10 | Battery (+) | - |
| 11 | - | Window down (Left) |
| 12 | Window up | Battery (+) |
