Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Remove the rear pillar trim.
(Refer to Interior Trim - "REAR PILLAR TRIM ")

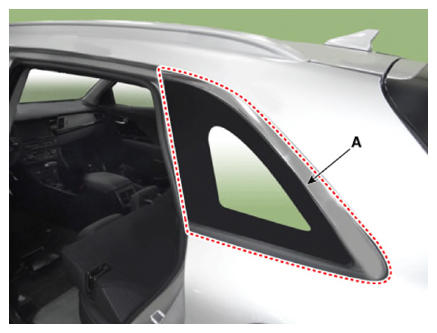

Loosen the quarter fixed glass (A) mounting nuts.
Tightening torque:

3.9 - 4.4 N.m (0.4 - 0.45 kgf.m, 2.9 - 3.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Information

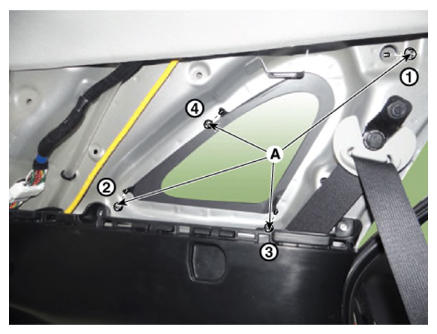

Tighten mounting nuts in the order of (1)→ (2)→ (3)→(4).
Remove the quarter fixed glass (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
