Repair Procedures: Removal

CAUTION: Put on gloves to prevent hand injuries.

NOTE: Use seat covers to avoid damaging any surfaces.

Remove the tailgate Trim.
(Refer to Tailgate - "TAILGATE TRIM ")
Remove the rear view monitor.
(Refer to Advanced Driver Assistance System (ADAS) - "REAR VIEW MONITOR ")
Remove the rear wiper motor.
(Refer to Body Electrical System - "WIPER MOTOR ")

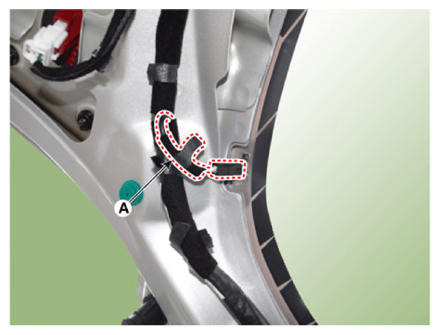

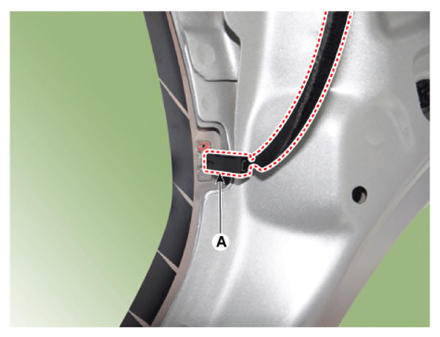

Disconnect the hot wire connector (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

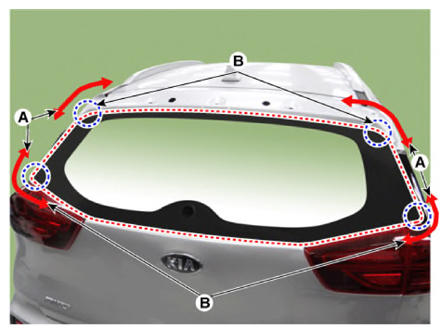

Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.
Information
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.

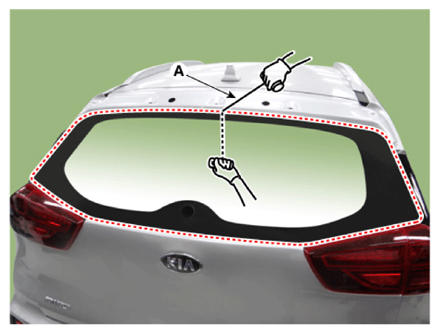

Put in a piano wire (A) through the corner of the tailgate window glass and insert wire grips into both ends of the wire.

Courtesy of KIA MOTORS AMERICA, INC.

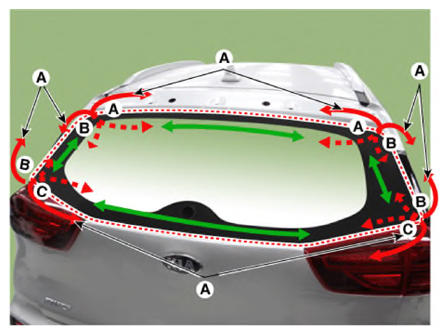

Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.

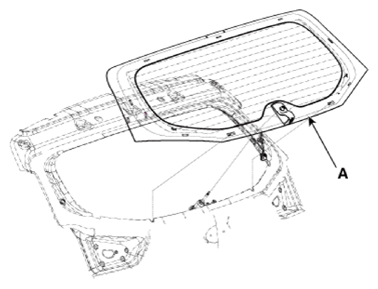

Remove the tailgate window glass (A).
