Repair Procedures: Removal

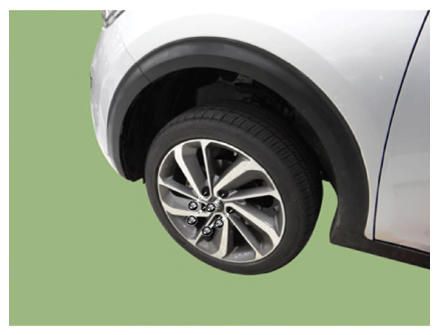

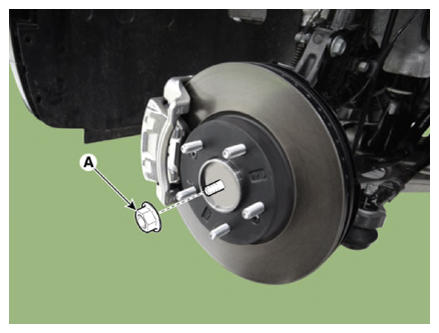

Remove the caulking nut (A) from the front axle.

Tightening torque:

274.6 - 294.2 N.m (28.0 - 30.0 kgf.m, 202.5 - 217.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

The driveshaft lock nut must be replaced with new one. When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

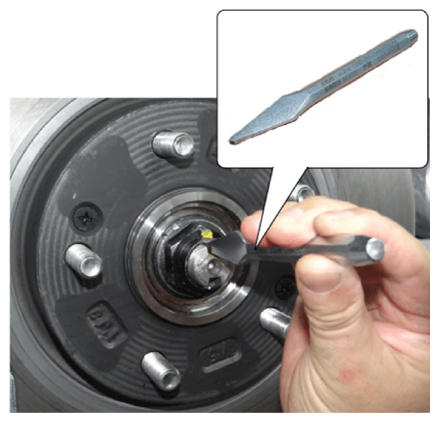

Tighten the driveshaft lock hub nut to the specified tightening torque, and caulk by using a chisel and hammer.
If there are two key seats, perform on all two seats.
Caulking depth (A) : 1.5 mm (0.0591 in)

Courtesy of KIA MOTORS AMERICA, INC.

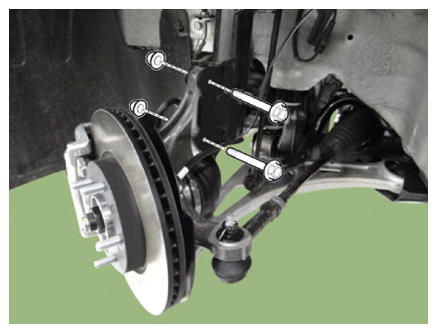

Remove the front caliper.
(Refer to Brake System - "FRONT DISC BRAKE ")

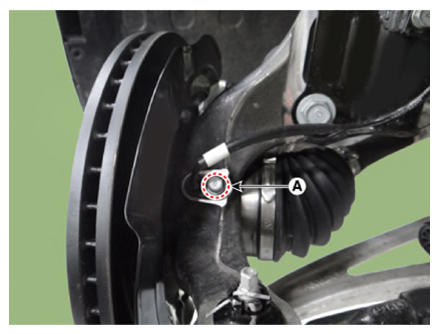

Remove the wheel speed sensor bolt (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

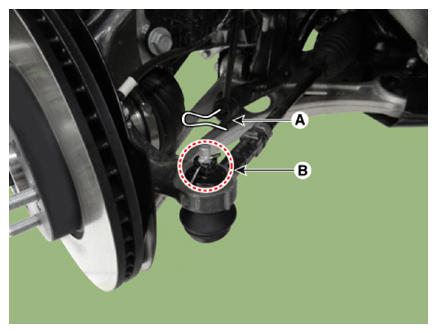

Remove the tie rod end pin (A) and nub (B).
Tightening torque:

78.4 - 98.0 N.m (8.0 - 10.0 kgf.m, 57.8 - 72.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

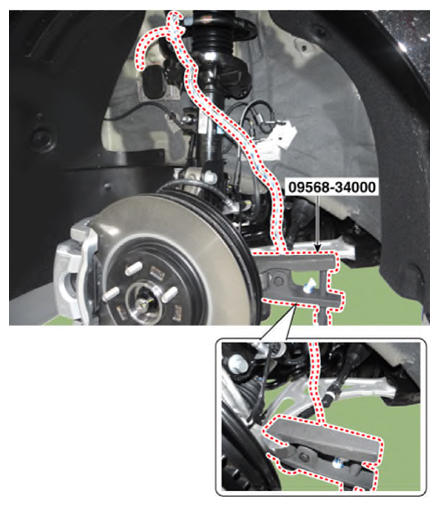

Remove the knuckle by using the SST (09568-34000).

Courtesy of KIA MOTORS AMERICA, INC.

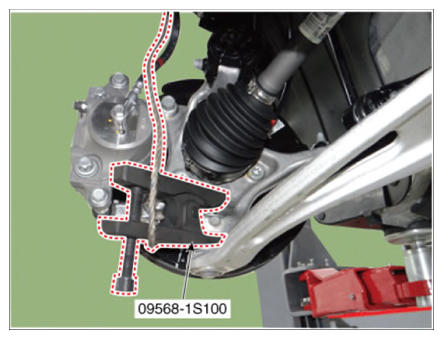

Disconnect the lower arm from the knuckle by using the SST (09568-1S100).

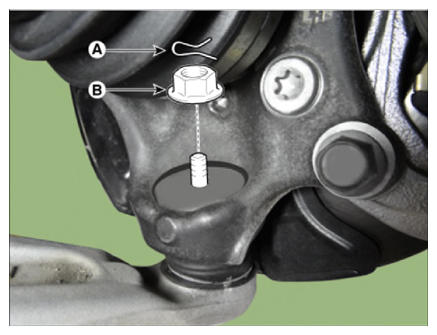

Remove the lower arm pin (A) and nut (B).

Tightening torque:

78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

When using SST, be sure not to damage the dust cover of lower arm ball joint.
Keep SST tied to the car because there is a risk of injury by dropping the SST during removing the lower arm ball joint.
The peripheral parts may be damaged when removing the lower arm ball joint with a general tool such as lever, so be sure to use SST.
