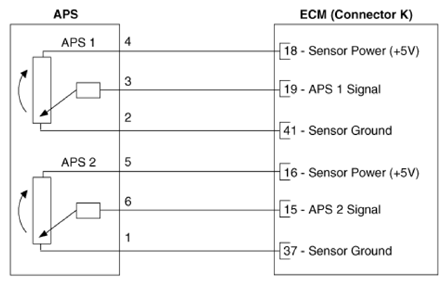

Home › Kia › 2021 › Niro Plug-In Hybrid EX › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (PHEV) › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram › Notes
