Repair Procedures: Removal

  1. Open the fuel filler door.
  2. Switch "OFF" the ignition and disconnect the negative (-) terminal of the auxiliary 12V battery.

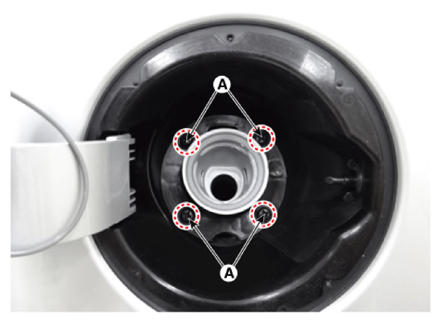

  3. Remove the filler-neck assembly mounting screws (A).
    G13348930Courtesy of KIA MOTORS AMERICA, INC.
  4. Lift the vehicle.

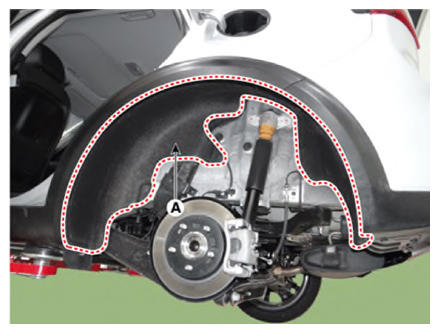

  5. Remove the rear-LH wheel, tire, and the inner wheel house (A).
    G13348931Courtesy of KIA MOTORS AMERICA, INC.

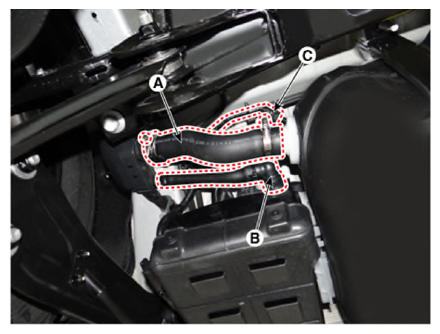

  6. Disconnect the fuel filler hose (A) and ventilation hose (B).
  7. Disconnect the vapor tube quick-connector (C).
    G13348932Courtesy of KIA MOTORS AMERICA, INC.

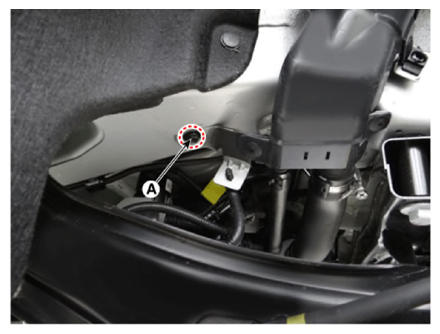

  8. Remove the filler-neck assembly after loosening the mounting bolt (A).
G13348933Courtesy of KIA MOTORS AMERICA, INC.
