Repair Procedures: Installation

NOTE:

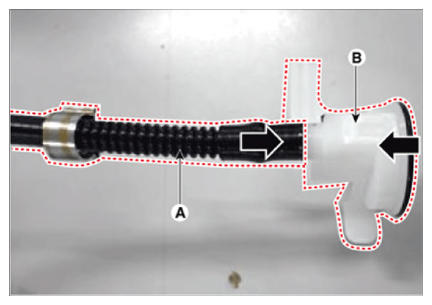

1. Put the tube (A) into the assist pump (B).

   Courtesy of KIA MOTORS AMERICA, INC.

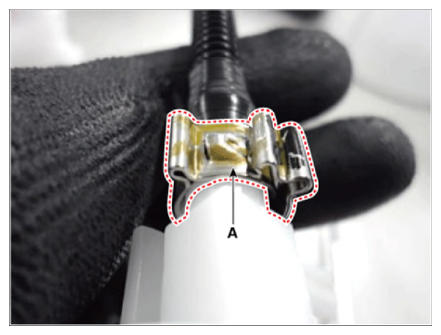

2. Put the clip (A) on the joint.

   Courtesy of KIA MOTORS AMERICA, INC.

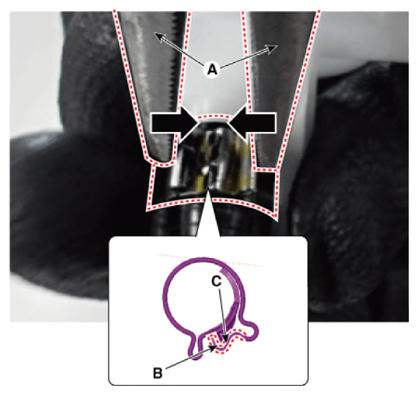

3. Hook the clip (B, C) by using plier (A).

   Courtesy of KIA MOTORS AMERICA, INC.

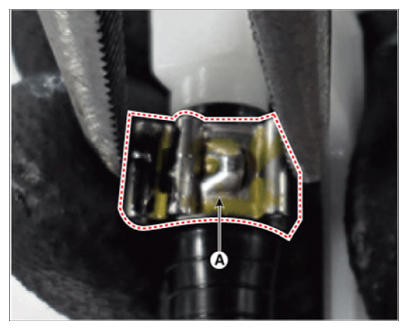

4. Fix the clip (A).

Courtesy of KIA MOTORS AMERICA, INC.
