Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

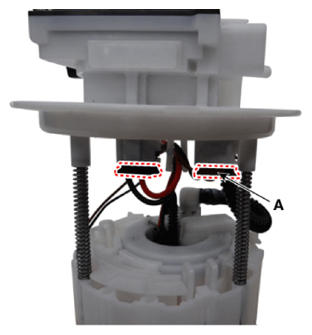

  2. Disconnect the fuel sender connector (A).
    G13348902Courtesy of KIA MOTORS AMERICA, INC.
  3. Lift the fixing hook (A) by using a common driver, and then remove the fuel sender (B).
G13348903Courtesy of KIA MOTORS AMERICA, INC.
G13348904Courtesy of KIA MOTORS AMERICA, INC.
