Visual Check

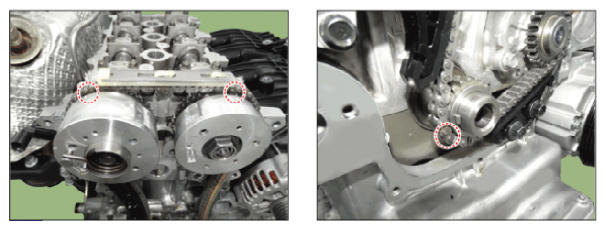

Check Camshaft and crankshaft alignment.

Courtesy of KIA MOTORS AMERICA, INC.

Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the ECM and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair as necessary and go to "VERIFICATION OF REPAIR " procedure.
